VEGATRENN 142

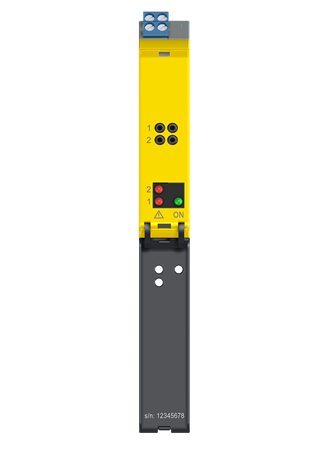

VEGATRENN 142 - Image 2

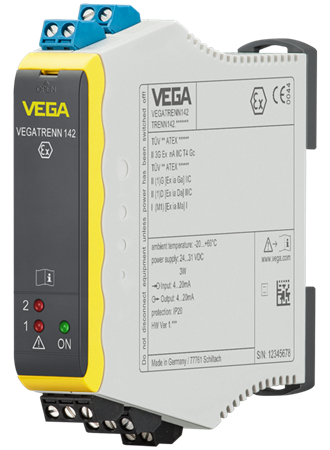

VEGATRENN 142

Application area

The double channel VEGATRENN 142 is used for galvanic separation, intrinsically safe power supply as well as signal transmission of Ex-approved 4 … 20 mA sensors in hazardous areas. The separate power supply ensures a reliable measured value transmission. VEGATRENN 142 is used in all industries als with Ex applications. The VEGATRENN 142 is suitable for bidirectional transmission of HART signals. The HART signal can be picked off via the HART communication sockets integrated in the front or the terminals. The complete HART permeability allows complete access to the sensor settings.

Your benefit

Simple installation though carrier rail mounting as well as detachable, coded terminals
Complete HART permeability enables free access to sensor settings
Universally applicable Ex separator for all 4 … 20 mA/HART sensors (use in Ex area is optional)
For auxiliary voltage 20.4 … 34.1 V DC to supply the device and the connected sensors

SKU: VEGATRENN 142

$22,600.00

Technical specifications

Protection rating	IP20
Input	2 x 4 … 20 mA sensor input
Output	2 x 4 … 20 mA
Ambient temperature	-20 … 60 °C

Approvals

Scope	ATEX / Europe EAC (GOST) / Belarus EAC (GOST) / Kazakhstan EAC (GOST) / Russia IEC / worldwide NEPSI / China UKR Sepro / Ukraine c-UL-us UKEX
SIL qualification	SIL2

Display & adjustment

Indication

LED

34149-EN-Chapter-Separating-and-protective-instruments

Product catalog
EN PDF

Product_information_-_VEGATRENN_141_VEGATRENN_142_VEGATRENN_151_VEGATRENN_152

Product information
EN PDF

Data_sheet_-_VEGATRENN_142_-_Double_channel_Ex_separator_for_4_?_20_mA_HART_sensors

Specification sheet
EN PDF

Operating_Instructions_-_VEGATRENN_142

Operating instructions
EN PDF
