A27-Vega Signal conditioning Separating instruments

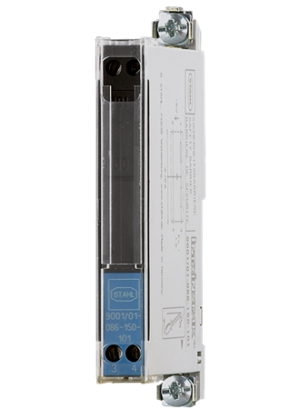

Safety barrier type 9001

Application area

The safety barrier type 9001 is used for separation of the intrinsically safe and non-intrinsically safe circuits and is ideal in conjunction with signal conditioning instruments without Ex approval.

Your benefit

Simple installation because no additional voltage supple required
Simple installation through carrier rail mounting
Reliable separation of intrinsically safe and non-intrinsically safe circuits

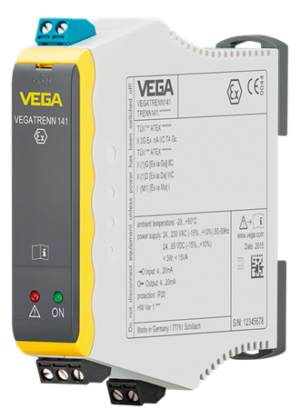

VEGATRENN 141

$15,300.00

Application area

The single channel VEGATRENN 141 is used for galvanic separation, intrinsically safe power supply as well as signal transmission of Ex-approved 4 … 20 mA sensors in hazardous areas. The separate power supply ensures a reliable measured value transmission. VEGATRENN 141 is used in all industries als with Ex applications. The VEGATRENN 141 is suitable for bidirectional transmission of HART signals. The HART signal can be picked off via the HART communication sockets integrated in the front or the terminals. The complete HART permeability allows complete access to the sensor settings.

Your benefit

Simple installation though carrier rail mounting as well as detachable, coded terminals
Complete HART permeability enables free access to sensor settings
Universally applicable Ex separator for all 4 ... 20 mA/HART sensors (use in Ex area is optional)
Universal all-current power supply unit for supplying the device and the connected sensor

VEGATRENN 142

$22,600.00

Application area

The double channel VEGATRENN 142 is used for galvanic separation, intrinsically safe power supply as well as signal transmission of Ex-approved 4 … 20 mA sensors in hazardous areas. The separate power supply ensures a reliable measured value transmission. VEGATRENN 142 is used in all industries als with Ex applications. The VEGATRENN 142 is suitable for bidirectional transmission of HART signals. The HART signal can be picked off via the HART communication sockets integrated in the front or the terminals. The complete HART permeability allows complete access to the sensor settings.

Your benefit

Simple installation though carrier rail mounting as well as detachable, coded terminals
Complete HART permeability enables free access to sensor settings
Universally applicable Ex separator for all 4 ... 20 mA/HART sensors (use in Ex area is optional)
For auxiliary voltage 20.4 ... 34.1 V DC to supply the device and the connected sensors

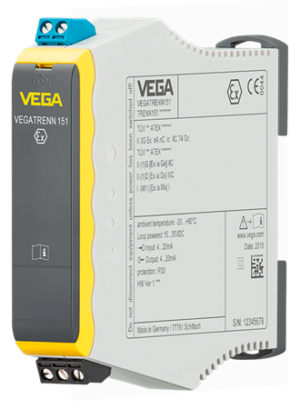

VEGATRENN 151

$13,400.00

Application area

The single channel VEGATRENN 151 is used for galvanic separation of intrinsically safe applications as well as signal transmission of Ex-approved 4 … 20 mA sensors in hazardous areas. The separator is ideal in conjunction with controllers without own Ex approval. The VEGATRENN 151 is suitable for bidirectional transmission of HART signals. The HART signal can be picked off via the HART communication sockets integrated in the front or the terminals. The complete HART permeability allows complete access to the sensor settings.

Your benefit

Simple installation because no additional voltage supple required
Simple installation though carrier rail mounting as well as detachable, coded terminals
Reliable separation of intrinsically safe and non-intrinsically safe measuring circuits (use in hazardous areas is optional)

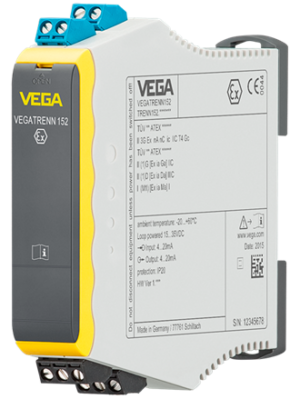

VEGATRENN 152

$19,600.00

Application area

The double channel VEGATRENN 152 is used for galvanic separation, intrinsically safe power supply as well as signal transmission of Ex-approved 4 … 20 mA sensors in hazardous areas. The separator is ideal in conjunction with controllers without own Ex approval. The VEGATRENN 152 is suitable for bidirectional transmission of HART signals. The HART signal can be picked off via the HART communication sockets integrated in the front or the terminals. The complete HART permeability allows complete access to the sensor settings.

Your benefit

Simple installation because no additional voltage supple required
Simple installation though carrier rail mounting as well as detachable, coded terminals
Reliable separation of intrinsically safe and non-intrinsically safe measuring circuits (use in hazardous areas is optional)
