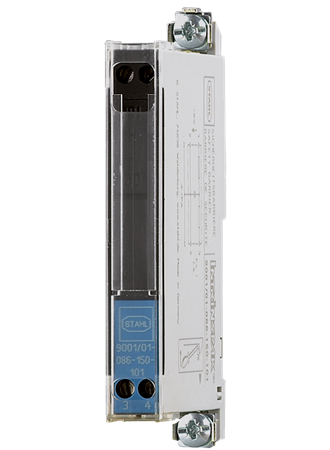

Safety barrier type 9001

Application area

The safety barrier type 9001 is used for separation of the intrinsically safe and non-intrinsically safe circuits and is ideal in conjunction with signal conditioning instruments without Ex approval.

Your benefit

Simple installation because no additional voltage supple required
Simple installation through carrier rail mounting
Reliable separation of intrinsically safe and non-intrinsically safe circuits

SKU: Safety barrier type 9001

Add to Cart

Technical specifications

Protection rating	IP20/IP40
Input	1 x 4 … 20 mA signal circuit
Output	1 x 4 … 20 mA
Ambient temperature	-20 … 60 °C
Signal input (specify)	4 … 20 mA/HART
Signal output (specify)	4 … 20 mA
