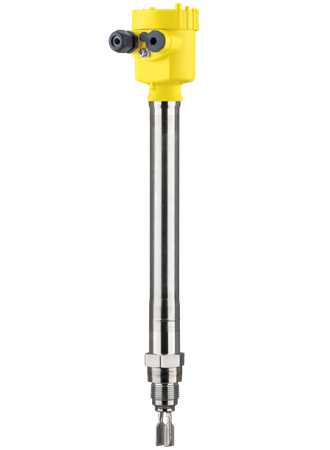

VEGASWING 66

VEGASWING 66

Application area

Configurable both as compact version and version with tube extension up to 3 m. Numerous process fittings, approvals as well as housing and electronics versions.

VEGASWING 66 is used as a universal vibrating level switch in all liquids. In compact version or with tube extension, it detects reliably with millimetre accuracy the limit level. The instrument can be used in vessels and steam generators as empty or full detector. The VEGASWING 66 offers maximum reliability and security in a wide process temperature and process pressure range.

Your benefit

Precise and reliable function due to product-independent switching point
Low maintenance costs
High reliability through monitored sensor element

SKU: VEGASWING 66

Technical Data
Reviews (0)

Technical specifications

Process temperature	-196 … 450 °C [°C – °F]
Process pressure	-1 … 160 bar [Bar – kPa – psi]
Version	Compact version with gas-tight leadthrough with tube extension
Materials, wetted parts	316L Alloy C22 (2.4602) Inconel 718
Threaded connection	G1, 1 NPT, R1
Flange connection	≥ DN50, ≥ 2″
Seal material	no media contact
Housing material	Plastic Aluminium Stainless steel (precision casting) Stainless steel (electropolished)
Protection rating	IP66/IP67 IP66/IP68 (1 bar) IP65
Output	Relay (DPDT) Transistor (NPN/PNP) Two-wire
Ambient temperature	-40 … 70 °C

Approvals

Scope	ATEX / Europe CSA / Canada EAC (GOST) / Belarus EAC (GOST) / Russia IEC / worldwide UKR Sepro / Ukraine INMETRO / Brazil CCOE / India
Explosion protection	Intrinsic safety “i” Flameproof enclosure “d”
Ship approval	BV GL
Overfill protection	WHG VLAREM II
SIL qualification	SIL2
Steam boiler approval	EN12952-11, EN12953-9

Display & adjustment

Indication

Pluggable display module PLICSLED
