| Process temperature |
-50 … 250 °C [°C – °F]
|
| Process pressure |
-1 … 16 bar [Bar – kPa – psi]
|
| Version |

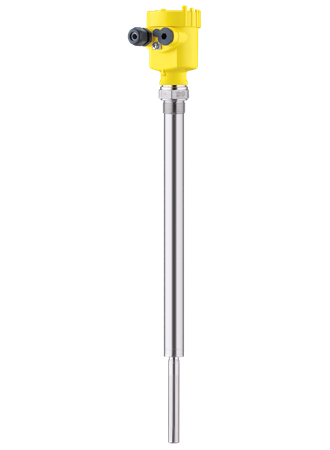

Detection of solids in water
with tube extension
|
| Materials, wetted parts |
316L
|
| Threaded connection |
≥ G1, ≥ 1 NPT
|
| Flange connection |
≥ DN 32, ≥ 1½”
|
| Hygenic fittings |
Slotted nut ≥ 1½”, ≥ DN40 – DIN 11851
Slotted nut ≥ 2″, DN50 – DIN 11851
Varivent ≥ DN32
hygienic fitting with tension flange DN32
hygienic fitting F40 with compression nut
Hygienic screw connections ≥ DN50 tube ø53 – DIN11864-1-A
Clamp ≥ 3½” , DN80 – DIN32676, ISO2852
Slotted nut ≥ 3″, DN65 – DIN 11851
Hyg. collar clamp adapter DN40PN40 DIN11864-3-A
|
| Seal material |
no media contact
|
| Housing material |
Plastic
Aluminium
Stainless steel (precision casting)
Stainless steel (electropolished)
|
| Protection rating |
IP66/IP68 (0,2 bar)
IP66/IP67
IP66/IP68 (1 bar)
|
| Output |
Relay (DPDT)
Contactless electronic switch
Transistor (NPN/PNP)
Two-wire
NAMUR
|
| Ambient temperature |
-40 … 80 °C
|
| Scope |
ATEX / Europe
CSA / Canada
FM / USA
EAC (GOST) / Belarus
EAC (GOST) / Kazakhstan
EAC (GOST) / Russia
IEC / worldwide
KOSHA / Korea
NEPSI / China
UKR Sepro / Ukraine
INMETRO / Brazil
CCOE / India
|
| Explosion protection |
Intrinsic safety “i”
Flameproof enclosure “d”
Dust explosion protection through housing “t”
|
| Foodstuffs/Pharma |
EHEDG
FDA
|
| SIL qualification |
SIL2
|
| Indication |
Pluggable display module PLICSLED
|
