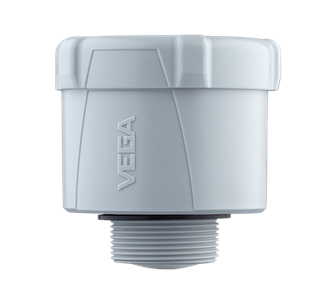

VEGAPULS Air 41

VEGAPULS Air 41

Application area

NB-IoT/CAT-M1, LoRa, measuring range up to 15m, accuracy +/-2mm

VEGAPULS Air 41 is the ideal sensor for all autarkic applications with bulk solids and liquids. It is particularly suitable for level measurement in mobile bulk solids silos for dry mortar, concrete and plasters as well as in liquid tanks of all kinds. VEGAPULS Air 41 offers an economical solution through simple and reliable mounting without additional power supply.

Your benefit

Exact measurement results independent of medium, process and environmental conditions
Maintenance-free operation due to non-contact 80 GHz radar technology
Easy installation thanks to autarkic voltage supply and radio technology

SKU: VEGAPULS Air 41

Technical specifications

Display & adjustment

Measuring range – Distance	15 m [Meter – Foot]
Process temperature	-20 … 60 °C [°C – °F]
Process pressure	-1 … 2 bar [Bar – kPa – psi]
Accuracy	± 2 mm
Frequency	80 GHz
Beam angle	8°
Materials, wetted parts	PVDF
Threaded connection	G1½, 1½ NPT, R1½
Seal material	FKM
Housing material	Plastic
Protection rating	IP66/IP68 (0.2 bar), Type 6X
Output	NB-IoT (LTE-Cat-NB1), LTE-M (LTECAT-M1), LoRa WAN
Ambient temperature	-20 … 60 °C

Adjustment

configurable when ordering
