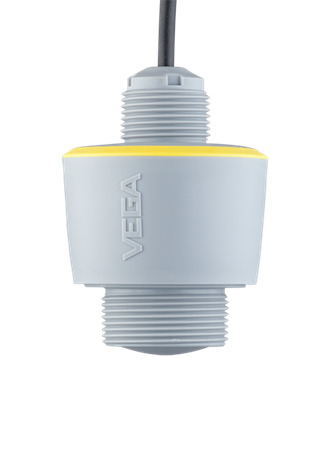

VEGAPULS C 11

VEGAPULS C 11

Application area

Axial cable outlet, 4 … 20 mA output, measuring range up to 8 m, accuracy ±5 mm, PVC cable with 10 m length

VEGAPULS C 11 is the ideal sensor for non-contact level measurement in simple applications where a high degree of protection is required. It is particularly suitable for use in water treatment, pumping stations, rain overflow basins and level monitoring. In bulk solids the sensors are used in small bulk solids silos or open containers.

Your benefit

Exact measurement results independent of medium, process and environmental conditions
Low-cost radar sensor for simple measurement tasks
Maintenance-free operation due to non-contact 80 GHz radar technology

SKU: VEGAPULS C 11

$53,200.00

Technical specifications

Display & adjustment

Measuring range – Distance	8 m [Meter – Foot]
Process temperature	-40 … 60 °C [°C – °F]
Process pressure	-1 … 3 bar [Bar – kPa – psi]
Accuracy	± 5 mm / ± 0.2″
Frequency	80 GHz
Beam angle	8°
Materials, wetted parts	PVDF
Threaded connection	G1½ / G1, 1½ NPT / 1 NPT, R1½ / R1
Seal material	FKM
Protection rating	IP66/IP68 (3 bar), Type 6P
Output	4 … 20 mA
Ambient temperature	-40 … 60 °C

Adjustment

PC, PACTware and DTM

Smartphone / Tablet / PC via Bluetooth

34137-EN-Chapter-VEGAPULS

Product catalog
EN PDF

58352-EN-Specification-sheet-VEGAPULS-C-11-two-wire-4-20-Ma

Product information
EN PDF

58365-EN-Product-information-VEGAPULS-C11-C21-C22-C23-11-21-31

Specification sheet
EN PDF

58340-EN-Operating-instructions-VEGAPULS-C-11-two-wire-4-20-mA

Operating instructions
EN PDF
