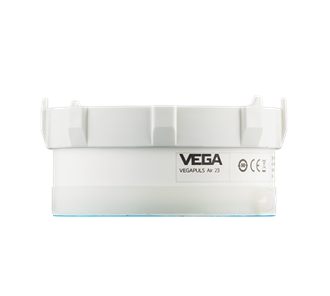

VEGAPULS Air 23

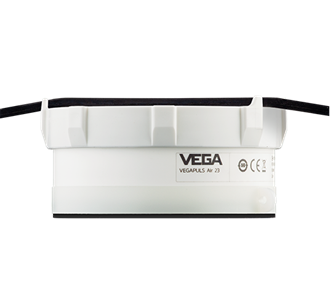

VEGAPULS Air 23 - Image 2

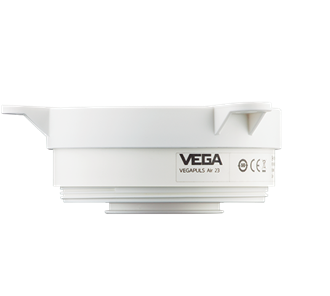

VEGAPULS Air 23 - Image 3

VEGAPULS Air 23

Application area

NB-IoT/CAT-M1, LoRa, measuring range up to 3m, accuracy +/-5mm

VEGAPULS Air 23 is the ideal sensor for level measurement in IBCs and plastic vessels. The instrument measures through the closed vessel ceiling and is suitable for nearly all liquids and bulk solids.VEGAPULS Air 23 is quickly mounted by simple and reliable adhesive, ceiling or tension belt mounting. Since no additional power supply is necessary, the autarkic sensor offers a particularly economical solution. The sensor housing with high protection rating IP69 enables maintenance-free continuous operation even outdoors or when cleaning the vessel.

Your benefit

Exact measuring results independent of medium, process and ambient conditions
Maintenance-free operation due to non-contact 80 GHz radar technology
Easy installation thanks to autarkic voltage supply and radio technology

SKU: VEGAPULS Air 23

Technical specifications

Approvals

Measuring range – Distance	3 m [Meter – Foot]
Process temperature	-20 … 60 °C [°C – °F]
Accuracy	± 5 mm / ± 0.2″
Frequency	80 GHz
Beam angle	8°
Threaded connection	via adhesive, ceiling or tension belt mounting
Housing material	Plastic / PVDF
Protection rating	IP69
Output	NB-IoT (LTE-Cat-NB1), LTE-M (LTECAT-M1), LoRa WAN
Ambient temperature	-20 … 60 °C

Display & adjustment

Scope	ATEX / Europe IEC / worldwide UKEX
Explosion protection	Dust explosion protection through housing “t”

Adjustment

Adjustment

66253-EN-Chapter-VEGAPULS-Air

Product catalog
EN PDF

64196-EN-Specification-sheet-VEGAPULS-Air-23

Product information
EN PDF

65343-EN-Product-information-VEGAPULS-Air-23-VEGAPULS-Air-41-VEGAPULS-Air-42

Specification sheet

EN PDF

64314-EN-Operating-Instructions-VEGAPULS-Air-23

Operating instructions

EN PDF
