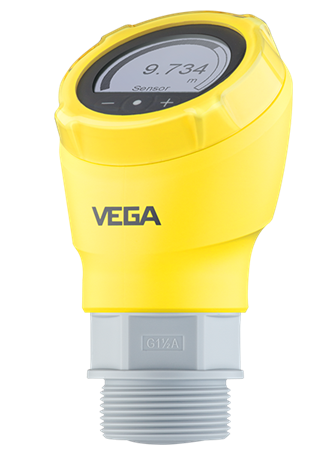

VEGAPULS 31

VEGAPULS 31

Application area

4 … 20 mA/HART output, measuring range up to 15 m, accuracy ±2 mm, Ex approval, on-site display and 3-button operation
VEGAPULS 31 is the ideal sensor for non-contact level measurement of liquids and bulk solids in simple applications. It is particularly suitable for use in water treatment, storage tanks with acids, lyes and additives in all industrial areas, or for measuring levels in plastic tanks from the outside through the tank wall. In bulk solids the sensors are used in small bulk solids silos or open containers.

Your benefit

  • Exact measurement results independent of medium properties and process conditions
  • On-site display for easy level control
  • Maintenance-free operation due to non-contact 80 GHz radar technology



SKU: VEGAPULS 31

$84,900.00

Add to Cart
Technical specifications
Approvals
Measuring range – Distance
15 m [Meter – Foot]
Process temperature
-40 … 80 °C [°C – °F]
Process pressure
-1 … 3 bar [Bar – kPa – psi]
Accuracy
± 2 mm
Frequency
80 GHz
Beam angle
8°
Materials, wetted parts
PVDF
Threaded connection
G1½, 1½ NPT, R1½
Seal material
FKM
Housing material
Plastic
Protection rating
IP66/IP67, Type 4X
Output
4 … 20 mA/HART
Ambient temperature
-40 … 70 °C
Display & adjustment
Scope
ATEX / Europe
EAC (GOST) / Russia
IEC / worldwide
NEPSI / China
INMETRO / Brazil
CCOE / India
KTL Korea
CSA / USA and Canada
TIIS / Japan
IA
Explosion protection
Intrinsic safety “i”
Foodstuffs/Pharma
FDA
Drinking water
EG1935/2004
Ship approval
ABS
BV
CCS
DNV
GL
LR
NK
RINA
Overfill protection
WHG
VLAREM II
Adjustment
PC, PACTware and DTM
Smartphone / Tablet / PC via Bluetooth
Indication
Display/adjustment module
