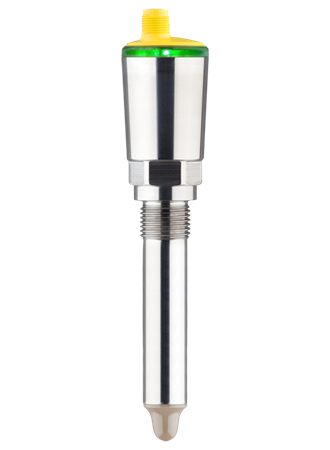

VEGAPOINT 23

VEGAPOINT 23

Application area

From DK > 1.5, from thread ½”, universal connection G1″ for hygiene adapter, M12, valve plug, transistor output, IO-Link, wireless operation, Ex and hygiene approvals, tube version, up to 1 m

VEGAPOINT 23 is a limit switch with remote switching point for detection of water-based liquids. The optional universal connection for hygiene adapters ensures reduced installation effort and leaner stock keeping and perfectly meets the requirements for hygienic processes in the food, beverage and pharmaceutical industries. It can be used without adjustment in the application. With IO-Link, it offers continuous digital data transmission.

Your benefit

Coloured 360° status display, adjustable
Easy integration into control systems through IO-Link communication
Low-cost limit switch with selectable switching point position / tube extension

SKU: VEGAPOINT 23

$28,600.00

Technical Data
Reviews (0)

Technical specifications

Approvals

Measuring range – Distance	– [Meter – Foot]
Process temperature	-40 … 115 °C [°C – °F]
Process pressure	-1 … 25 bar [Bar – kPa – psi]
Materials, wetted parts	316L PEEK
Threaded connection	≥ G½, ≥ ½ NPT
Hygenic fittings	Clamp ≥ 2″, DN50 – DIN32676, ISO2852 Clamp ≥ 1″ – DIN32676, ISO2852 Clamp ≥ 1½” – DIN32676, ISO2852 Slotted nut ≥ 1½”, ≥ DN40 – DIN 11851 Slotted nut ≥ DN25 – DIN 11851 Slotted nut ≥ DN32 – DIN 11851
Seal material	EPDM FKM
Protection rating	IP66/IP67 IP69
Output	Transistor (NPN/PNP) IO-Link
Ambient temperature	-40 … 70 °C

Display & adjustment

Scope	ATEX / Europe IEC / worldwide KOSHA / Korea NEPSI / China UKR Sepro / Ukraine INMETRO / Brazil KTL Korea CSA / USA and Canada CCC IA UKEX
Explosion protection	Dust explosion protection through housing “t” Increased safety “e”
Foodstuffs/Pharma	FDA EG1935/2004
Ship approval	ABS BV CCS DNV LR NK
Overfill protection	WHG VLAREM II

Adjustment	Smartphone / Tablet / PC via Bluetooth PC, PACTware and DTM, IODD
Indication	360° status display
