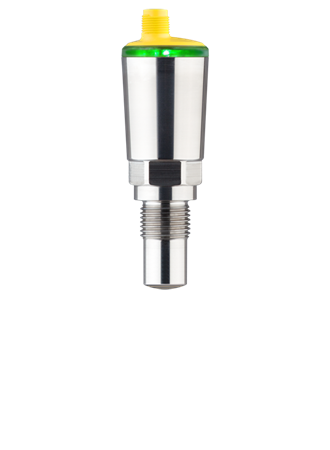

VEGAPOINT 24

VEGAPOINT 24

Application area

From DK > 1.5, from thread ½”, universal adapter G1* for hygiene adapter M12, valve plug, transistor output, IO-Link, wireless operation, Ex and hygiene approvals
VEGAPOINT 24 is designed for level detection of very adhesive products and can reliably detect the coverage state even with the strongest buildup due to the intelligent evaluation. The absolutely front-flush design ensures cleaning without spray shadows.

Your benefit

  • Coloured 360° status display, adjustable
  • Easy integration into control systems through IO-Link communication
  • Low-cost limit switch with smallest installation dimensions
SKU: VEGAPOINT 24

$34,700.00

Add to Cart
Technical specifications
Approvals
Measuring range – Distance
– [Meter – Foot]
Process temperature
-40 … 115 °C [°C – °F]
Process pressure
-1 … 25 bar [Bar – kPa – psi]
Materials, wetted parts
316L
PEEK
Threaded connection
G½
Hygenic fittings
Clamp ≥ 2″, DN50 – DIN32676, ISO2852
Clamp ≥ 1″ – DIN32676, ISO2852
Clamp ≥ 1½” – DIN32676, ISO2852
Protection rating
IP66/IP67
IP69
Output
Transistor (NPN/PNP)
IO-Link
Ambient temperature
-40 … 70 °C
Display & adjustment
Scope
ATEX / Europe
Explosion protection
Increased safety “e”
Foodstuffs/Pharma
3A
FDA
EG1935/2004
Adjustment
Smartphone / Tablet / PC via Bluetooth
PC, PACTware and DTM, IODD
Indication
360° status display
