| Measuring range – Distance |
40 m [Meter – Foot]
|
| Process temperature |
-50 … 400 °C [°C – °F]
|
| Process pressure |
-1 … 16 bar [Bar – kPa – psi]
|
| Version |

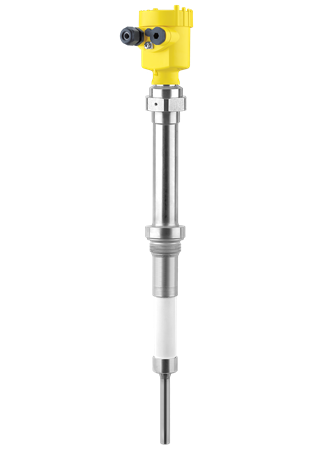

Ceramic insulated cable probe
Ceramic insulated cable probe with crimping sleeve
Ceramic insulated rod probe
|
| Materials, wetted parts |
316L
Ceramic
316
|
| Threaded connection |
≥ G1½, ≥ 1½ NPT
|

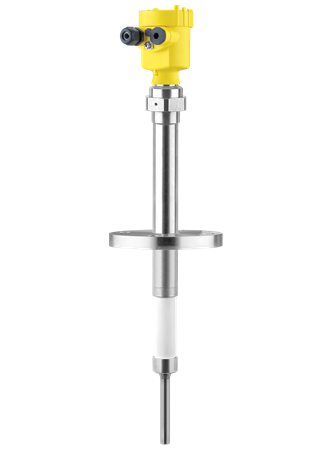

| Flange connection |
≥ DN50, ≥ 2″
|
| Seal material |
no media contact
|
| Housing material |
Plastic
Aluminium
Stainless steel (precision casting)
Stainless steel (electropolished)
|
| Protection rating |
IP66/IP68 (0,2 bar)
IP66/IP67
IP66/IP68 (1 bar)
|
| Output |
Profibus PA
Foundation Fieldbus
4 … 20 mA/HART – two-wire
|
| Ambient temperature |
-40 … 80 °C
|
| Adjustment |
PLICSCOM
PC, PACTware and DTM
HART-Communicator
Software (e. g. AMS™, PDM)
|
| Indication |
Display/adjustment module PLICSCOM
VEGADIS 62
VEGADIS 81
VEGADIS 82
|
Datasheet
EN PDF
Datasheet
EN PDF
Datasheet
EN PDF
