| Measuring range – Distance |
6 m [Meter – Foot]
|
| Process temperature |
-50 … 200 °C [°C – °F]
|
| Process pressure |
-1 … 64 bar [Bar – kPa – psi]
|
| Version |
with screening tube PN1
with concentric tube
Standard
|
| Materials, wetted parts |
PTFE
316L
Alloy 400 (2.4360)
PEEK
Steel C22.8
|

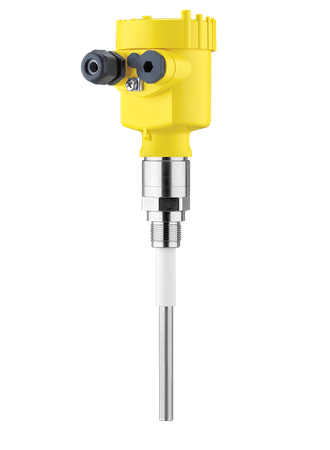

| Threaded connection |
≥ G½, ≥ ½ NPT
|

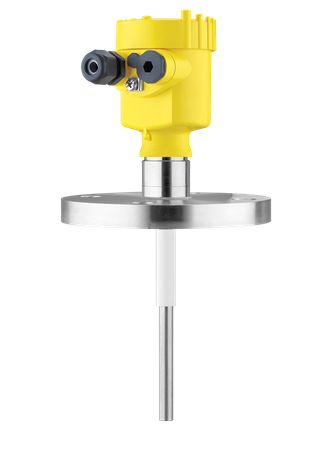

| Flange connection |
≥ DN25, ≥ 1″
|
| Seal material |
no media contact
|
| Housing material |
Plastic
Aluminium
Stainless steel (precision casting)
Stainless steel (electropolished)
|
| Protection rating |
IP66/IP68 (0,2 bar)
IP66/IP67
IP66/IP68 (1 bar)
|
| Output |
Profibus PA
Foundation Fieldbus
4 … 20 mA/HART – two-wire
|
| Ambient temperature |
-40 … 80 °C
|
| Scope |
ATEX / Europe
CSA / Canada
FM / USA
EAC (GOST) / Belarus
EAC (GOST) / Kazakhstan
EAC (GOST) / Russia
IEC / worldwide
KOSHA / Korea
NEPSI / China
UKR Sepro / Ukraine
INMETRO / Brazil
|
| Explosion protection |
Intrinsic safety “i”
Dust explosion protection through housing “t”
|
| Foodstuffs/Pharma |
FDA
|
| Ship approval |
ABS
BV
CCS
DNV
GL
LR
RINA
RMROS
|
| Overfill protection |
WHG
VLAREM II
|
| SIL qualification |
SIL2
|
| Adjustment |
PLICSCOM
PC, PACTware and DTM
HART-Communicator
Software (e. g. AMS™, PDM)
|
| Indication |
Display/adjustment module PLICSCOM
VEGADIS 81
VEGADIS 82
|
