| Measuring range – Distance |
6 m [Meter – Foot]
|
| Process temperature |
-50 … 200 °C [°C – °F]
|
| Process pressure |
-1 … 64 bar [Bar – kPa – psi]
|
| Version |
PE insulation
PE insulation and concentric tube
PTFE insulation
PTFE insulation with screening tube PN1
PTFE insulation with screening tube PN16
PTFE insulation with screening tube PN40
PTFE insulation and concentric tube
|
| Materials, wetted parts |
PTFE
316L
Alloy C22 (2.4602)
Alloy 400 (2.4360)
PE
Steel C22.8
|
| Threaded connection |
≥ G½, ≥ ½ NPT
|

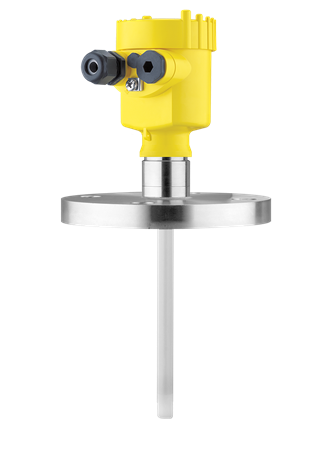

| Flange connection |
≥ DN25, ≥ 1″
|
| Seal material |
no media contact
|
| Housing material |
Plastic
Aluminium
Stainless steel (precision casting)
Stainless steel (electropolished)
|
| Protection rating |
IP66/IP68 (0,2 bar)
IP66/IP67
IP66/IP68 (1 bar)
|
| Output |
Profibus PA
Foundation Fieldbus
4 … 20 mA/HART – two-wire
|
| Ambient temperature |
-40 … 80 °C
|
| Scope |
ATEX / Europe
CSA / Canada
FM / USA
EAC (GOST) / Belarus
EAC (GOST) / Kazakhstan
EAC (GOST) / Russia
IEC / worldwide
KOSHA / Korea
NEPSI / China
UKR Sepro / Ukraine
INMETRO / Brazil
|
| Explosion protection |
Intrinsic safety “i”
Dust explosion protection through housing “t”
|
| Foodstuffs/Pharma |
FDA
|
| Ship approval |
ABS
BV
CCS
DNV
GL
LR
RINA
RMROS
|
| Overfill protection |
WHG
VLAREM II
|
| SIL qualification |
SIL2
|
| Adjustment |
PLICSCOM
PC, PACTware and DTM
HART-Communicator
Software (e. g. AMS™, PDM)
|
| Indication |
Display/adjustment module PLICSCOM
VEGADIS 81
VEGADIS 82
|
