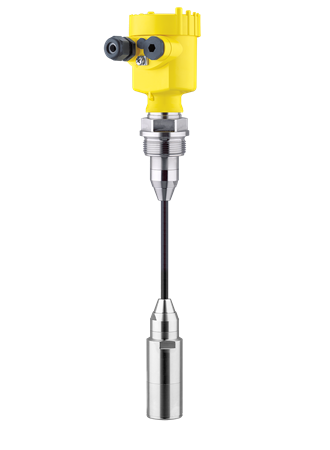

VEGABAR 87

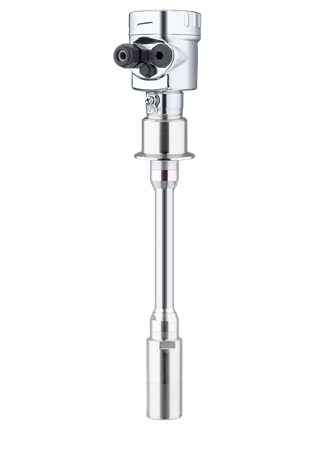

VEGABAR 87 - Image 2

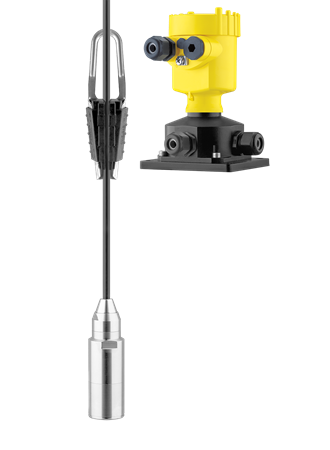

VEGABAR 87 - Image 3

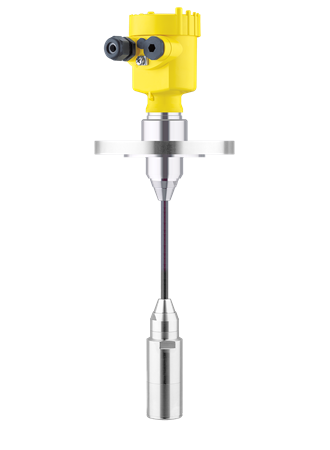

VEGABAR 87 - Image 4

VEGABAR 87

Application area

For level measurement of liquids and corrosive media. Maximum sensor length: Cable 250 m, tube 6 m. Can be combined with any other sensor of VEGABAR Series 80 for electronic differential pressure measurement.

The VEGABAR 87 is a pressure transmitter for pressure and level measurements of liquids and viscous products with higher temperatures in the chemical, food processing and pharmaceutical industry. With VEGABAR 87 it is possible to detect even smallest measuring ranges from 0.1 bar. The simple connection of VEGABAR series 80 sensors as electronic differential pressure opens new possibilities for the measurement of differential pressures.

Your benefit

Maximum reliability even with rapidly changing process temperatures
High plant availability through vacuum-resistant version
Very good cleanability and high chemical resistance through adapted materials

SKU: VEGABAR 87

Technical specifications

Measuring range – Pressure	0 … 25 bar [Bar – kPa – psi]
Process temperature	-12 … 100 °C [°C – °F]
Process pressure	0 … 25 bar [Bar – kPa – psi]
Accuracy	0.1 %
Materials, wetted parts	316L Duplex (1.4462) FEP
Threaded connection	≥ G1½, ≥ 1½ NPT
Flange connection	≥ DN50, ≥ 2″
Seal material	no media contact
Housing material	Plastic Aluminium Stainless steel (precision casting) Stainless steel (electropolished)
Protection rating	IP66/IP68 (0,2 bar) IP66/IP67 IP66/IP68 (1 bar) IP69K
Output	Profibus PA Foundation Fieldbus 4 … 20 mA 4 … 20 mA/HART – two-wire Modbus Secondary electronics for electronic differential pressure
Ambient temperature	-40 … 80 °C

Approvals

Scope	ATEX / Europe FM / USA EAC (GOST) / Belarus EAC (GOST) / Kazakhstan EAC (GOST) / Russia IEC / worldwide NEPSI / China INMETRO / Brazil CCOE / India CSA / USA and Canada UKEX
Explosion protection	Intrinsic safety “i” Flameproof enclosure “d” Dust explosion protection through housing “t”
Foodstuffs/Pharma	FDA EG1935/2004
Ship approval	ABS BV CCS DNV LR NK RINA RMROS
Overfill protection	WHG VLAREM II
SIL qualification	SIL2

Display & adjustment

Adjustment	PLICSCOM PC, PACTware and DTM HART-Communicator Software (e. g. AMS™, PDM)
Indication	Display/adjustment module PLICSCOM VEGADIS 81 VEGADIS 82
