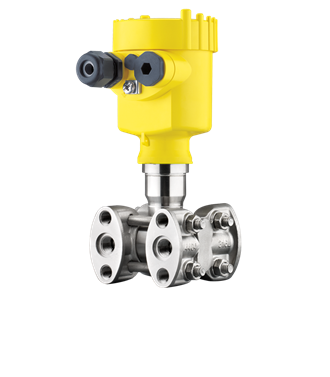

VEGADIF 85

VEGADIF 85

Application area

For applications with liquids in small containers under simple process conditions. Possible applications can be found in almost all industrial sectors.

The VEGADIF 85 is a universal differential pressure transmitter for measurement of liquids, gases and vapours. Typical application areas are level measurement in pressurized vessels as well as flow measurement in combination with effective pressure transmitters. Further applications are pressure monitoring on filters as well as density and interface measurements.

Your benefit

High reliability through integrated overload diaphragm
Measurement of very low differential pressures through high precision measured value detection
Multivariable sensor through integrated measurement of the absolute pressure

SKU: VEGADIF 85

Technical specifications

Approvals

Measuring range – Pressure	-40 … 40 bar [Bar – kPa – psi]
Process temperature	-40 … 105 °C [°C – °F]
Process pressure	-1 … 400 bar [Bar – kPa – psi]
Accuracy	0.065 %
Materials, wetted parts	316L Tantalum Alloy C276 (2.4819) Monel
Threaded connection	¼ – 18 NPT
Flange connection	≥ DN32, ≥ 1⅜”
Seal material	EPDM FKM Copper
Housing material	Plastic Aluminium Stainless steel (precision casting) Stainless steel (electropolished)
Protection rating	IP66/IP68 (0,2 bar) IP66/IP67 IP66/IP68 (1 bar)
Output	4 … 20 mA/HART Profibus PA Foundation Fieldbus 4 … 20 mA
Ambient temperature	-40 … 80 °C

Display & adjustment

Scope	ATEX / Europe FM / USA IEC / worldwide UKR Sepro / Ukraine INMETRO / Brazil CSA / USA and Canada UKEX
Explosion protection	Intrinsic safety “i” Flameproof enclosure “d” Dust explosion protection through housing “t”
Ship approval	DNV GL
Overfill protection	WHG VLAREM II
SIL qualification	SIL2

Adjustment	PLICSCOM PC, PACTware and DTM HART-Communicator Software (e. g. AMS™, PDM) Bluetooth
Indication	Display/adjustment module PLICSCOM VEGADIS 81 VEGADIS 82

53579-EN-VEGADIF-85-4-20-mA-HART

Specification sheet
EN PDF

53566-EN-VEGADIF-85-4-20-mA

Operating instructions
EN PDF
