A5-Vega Level Measurement Hydrostatic

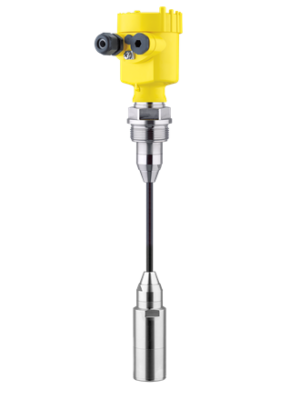

VEGABAR 87

Application area

For level measurement of liquids and corrosive media. Maximum sensor length: Cable 250 m, tube 6 m. Can be combined with any other sensor of VEGABAR Series 80 for electronic differential pressure measurement.

The VEGABAR 87 is a pressure transmitter for pressure and level measurements of liquids and viscous products with higher temperatures in the chemical, food processing and pharmaceutical industry. With VEGABAR 87 it is possible to detect even smallest measuring ranges from 0.1 bar. The simple connection of VEGABAR series 80 sensors as electronic differential pressure opens new possibilities for the measurement of differential pressures.

Your benefit

Maximum reliability even with rapidly changing process temperatures
High plant availability through vacuum-resistant version
Very good cleanability and high chemical resistance through adapted materials

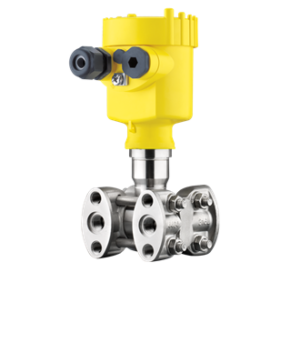

VEGADIF 85

Application area

For applications with liquids in small containers under simple process conditions. Possible applications can be found in almost all industrial sectors.

The VEGADIF 85 is a universal differential pressure transmitter for measurement of liquids, gases and vapours. Typical application areas are level measurement in pressurized vessels as well as flow measurement in combination with effective pressure transmitters. Further applications are pressure monitoring on filters as well as density and interface measurements.

Your benefit

High reliability through integrated overload diaphragm
Measurement of very low differential pressures through high precision measured value detection
Multivariable sensor through integrated measurement of the absolute pressure

VEGAWELL S51

$41,800.00

Application area

Output signal 4 ... 20 mA, PE suspension cable, available measuring ranges: Relative pressure 0.1 / 0.2 / 0.4 / 1 / 2.5 bar, Sensor length depends on measuring range

The VEGAWELL S 51 is suitable for continuous level measurement of liquids, particularly for gauge measurement in water basins, waste water shafts, deep wells and applications on ships. The VEGAWELL S 51 is an economical solution through its versatile and simple mounting options.
