SIZE RANGE: 2 – 24 inch (50 mm – 600 mm)
MAX TEMP: 140°F (60°C)
MAX PRESSURE: 250 PSI

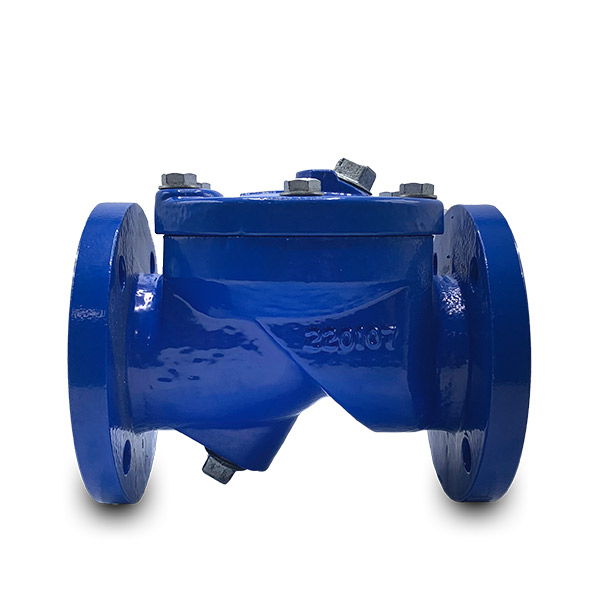

745 – 45° Seat Flo-Flex®, Swing Check Valve Epoxy coated Ductile Iron Body, ANSI B16.5, class 150#, ANSI/AWWA C508, with Buna-N coated disc.
745 AIS– 45° Seat Flo-Flex®, Swing Check Valve Epoxy coated Ductile Iron Body, ANSI B16.1, class 150, ANSI/AWWA C508, with Buna-N coated Disc, and stainless steel cover fasteners. The cover and bottom port are also drilled and tapped with NPT plug.
Optional body bosses drilled and tapped with stainless steel plugs, consult factory.
All accessories available. Backflush Device, Position Indicator, and Limit Switch. Consult Factory for Pricing.
| Part Number | Size | None | List Price |
|---|---|---|---|
| 2380 | 2″” | 19 | $693 |
| 2381 | 2 1/2″” | 25 | $798 |
| 3382* | 3″” | 40 | $1,144 |
| 2382 | 3″” | 33 | $847 |
| 3383* | 4″” | 60 | $1,369 |
| 2383 | 4″” | 34 | $1,007 |
| 3385* | 6″” | 136 | $2,158 |
| 2385 | 6″” | 77 | $1,583 |
| 3386* | 8″” | 203 | $3,535 |
| 2386 | 8″” | 121 | $2,855 |
| 3387* | 10″” | 388 | $5,744 |
| 2387 | 10″” | 198 | $4,439 |
| 3388* | 12″” | 550 | $8,578 |
| 2388 | 12″” | 309 | $6,384 |
| 2390 | 14″” | 740 | $9,266 |
| 2391 | 16″” | 1,035 | $12,533 |
| 2392 | 18″” | 1,540 | $14,991 |
| 2393 | 20″” | 1,835 | $18,460 |
| 2394 | 24″” | 2,475 | $27,845 |
