SIZE RANGE: 2 – 10 inch (50 mm – 250 mm)
MAX TEMP: 180°F (80°C)
MAX PRESSURE: 200 PSI

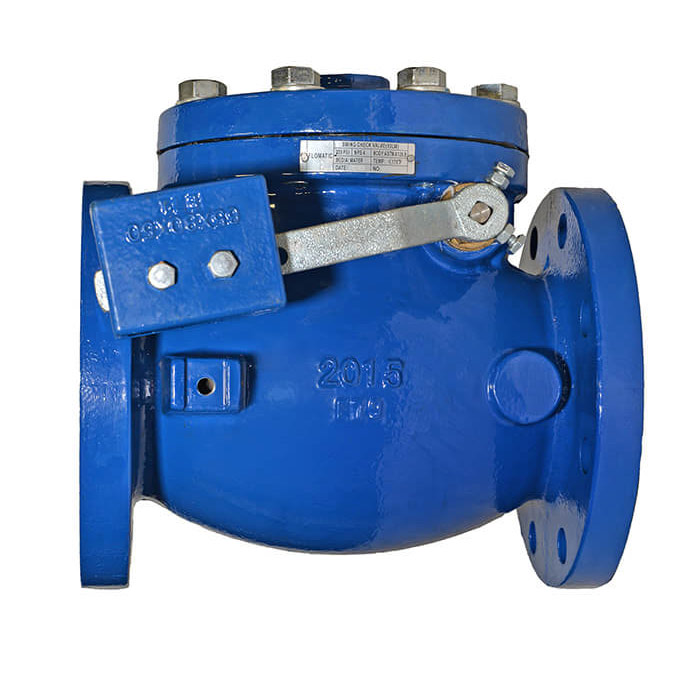

93LW – Swing check valve with outside lever and weight. Epoxy coated ductile iron body. Flanged connection ANSI B16.1, class 150. Stainless steel seat and shaft. Resilient seal is standard. Imported, mainly for AG/Irrigation purposes, not municipal.
Temp Max: 180°F (80°C)
Pressure Max: 200 PSI
| Part Number | Size | None | List Price |
|---|---|---|---|
| 2804LW | 2″” | 38 | $1,782 |
| 2806LW | 3″” | 62 | $1,922 |
| 2807LW | 4″” | 90 | $2,022 |
| 2809LW | 6″” | 163 | $2,661 |
| 2810LW | 8″” | 282 | $3,964 |
| 2811LW | 10″” | 481 | $7,499 |
