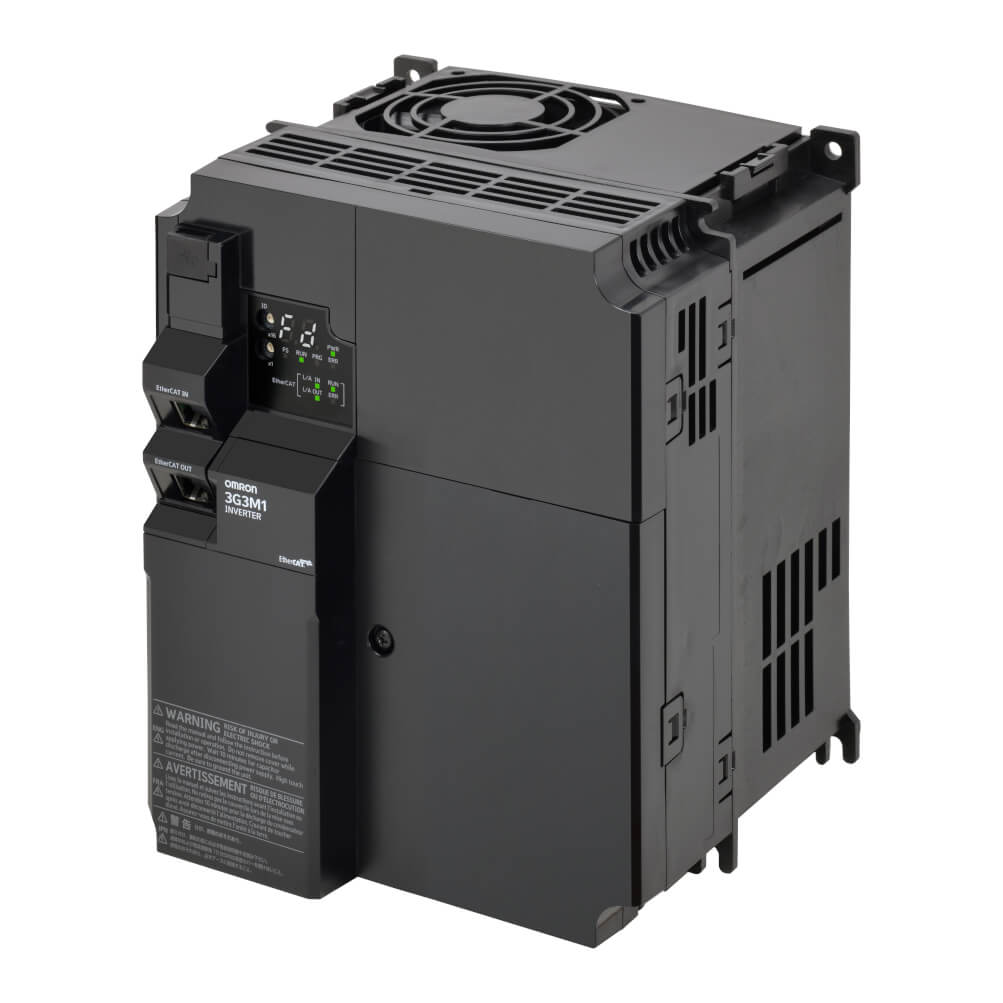

M1 AC Drive, 5.5/7.5 kW (HD/ND), 25/30 A (HD/ND), 200 VAC, 3~ input, OLV/CLV control, EtherCAT, STO (FSoE + wired), max. output freq. 590 Hz.
| Drive control method | Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector, V/f control, Vector control |
| Drive supply voltage | 230 V three phase |
| Max. motor output at constant torque (HD) | 5.5 kW |
| Max. motor output at variable torque (ND) | 7.5 kW |
| Built in EMC filter | ❌ |
| Degree of protection (IP) | IP20 |
| Compatible motor type | Induction or asynchronous motor, Permanent magnet motor |
| Communication port(s) | EtherCAT Slave, USB |
| Product Height (unpacked) | 220 mm |
| Product Width (unpacked) | 180 mm |
| Product Depth (unpacked) | 171 mm |
| Product Weight (unpacked) | 3800 g |
| Finless type | ❌ |
| AX-FER2815-PE | Ferrite choke, 28mm diameter, for 15kW inverters and below |
|
|
| AX-FIC4044-SE | M1 RFI filter 44 A, 400 VAC, three phase. |
|
|
| AX-FIC4044-SE-LL | Low Leakage M1 RFI filter 44 A, 400 VAC, three phase. |
|
|
| AX-RAI00210330-DE | AC input reactor, 33 A, 0.21 mH, for 5.5 to 7.5 kW sizes, 200 VAC, 3 phase |
|
|
| AX-RAI00290250-DE | AC input reactor, 25 A, 0.29 mH, for 3.7 to 5.5 kW sizes, 200 VAC, 3 phase |
|
|
| AX-RAO00950320-DE | AC output reactor, 32 A, 0.95 mH, for 7.5 kW, 200 VAC, 3 phase |
|
|
| AX-RC00840437-DE | DC link reactor, 43.7 A, 0.84 mH, for 7.5 kW, 200 VAC |
|
|
| AX-RC01110309-DE | DC link reactor, 30.9 A, 1.11 mH, for 5.5 kW, 200 VAC |
|
|
| AX-REM00K3025-IE | Braking resistor, 300 W, 25 ohm nominal |
|
|
| AX-REM00K4020-IE | Braking resistor, 400 W, 20 ohm nominal |
|
|
| AX-REM00K6030-IE | Braking resistor, 600 W, 30 ohm nominal |
|
