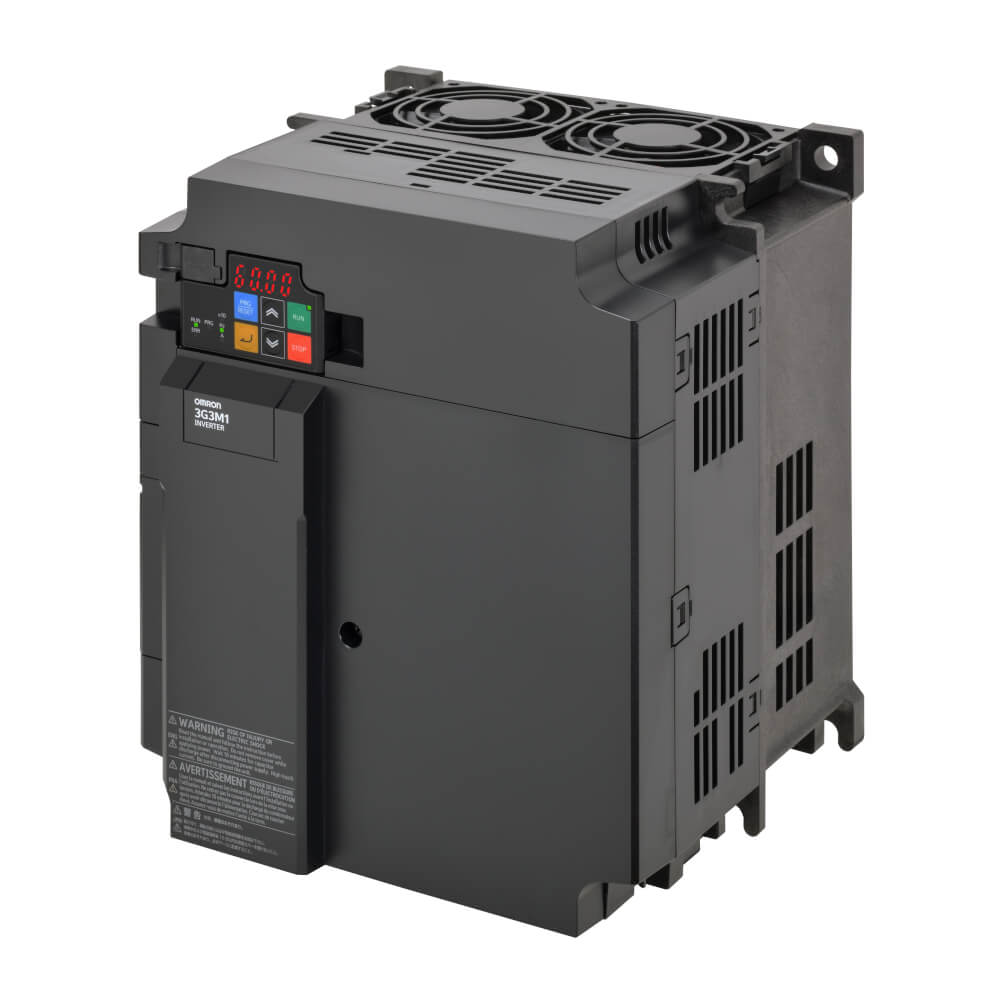

M1 AC Drive, 15/18.5 kW (HD/ND), 60/69 A (HD/ND), 200 VAC, 3~ input, OLV/CLV control, STO (wired), max. output freq. 590 Hz
| Drive control method | Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector, V/f control, Vector control |
| Drive supply voltage | 230 V three phase |
| Max. motor output at constant torque (HD) | 15 kW |
| Max. motor output at variable torque (ND) | 18.5 kW |
| Built in EMC filter | ❌ |
| Degree of protection (IP) | IP20 |
| Compatible motor type | Induction or asynchronous motor, Permanent magnet motor |
| Communication port(s) | MODBUS Slave, Serial RS-485, USB |
| Product Height (unpacked) | 260 mm |
| Product Width (unpacked) | 220 mm |
| Product Depth (unpacked) | 203 mm |
| Product Weight (unpacked) | 5400 g |
| Finless type | ❌ |
| AX-FER2815-PE | Ferrite choke, 28mm diameter, for 15kW inverters and below |
|
|
| AX-RAI00091000-DE | AC input reactor, 100 A, 0.09 mH, for 18.5 to 22 kW sizes, 200 VAC, 3 phase |
|
|
| AX-RAI00110600-DE | AC input reactor, 60 A, 0.11 mH, for 11 to 15 kW sizes, 200 VAC, 3 phase |
|
|
| AX-RAO00390800-DE | AC output reactor, 80 A, 0.39 mH, for 18.5 kW , 200 VAC, 3 phase |
|
|
| AX-RAO00490640-DE | AC output reactor, 64 A, 0.49 mH, for 15 kW, 200 VAC, 3 phase |
|
|
| AX-RC00440859-DE | DC link reactor, 85.9 A, 0.44 mH, for 15 kW, 200 VAC |
|
|
| AX-REM001K1015-IE | Braking resistor, 1100 W, 15 ohm nominal |
|
|
| AX-REM00K6015-IE | Braking resistor, 600 W, 15 ohm nominal |
|
|
| AX-REM00K9010-IE | Braking resistor, 900 W, 10 ohm nominal |
|
