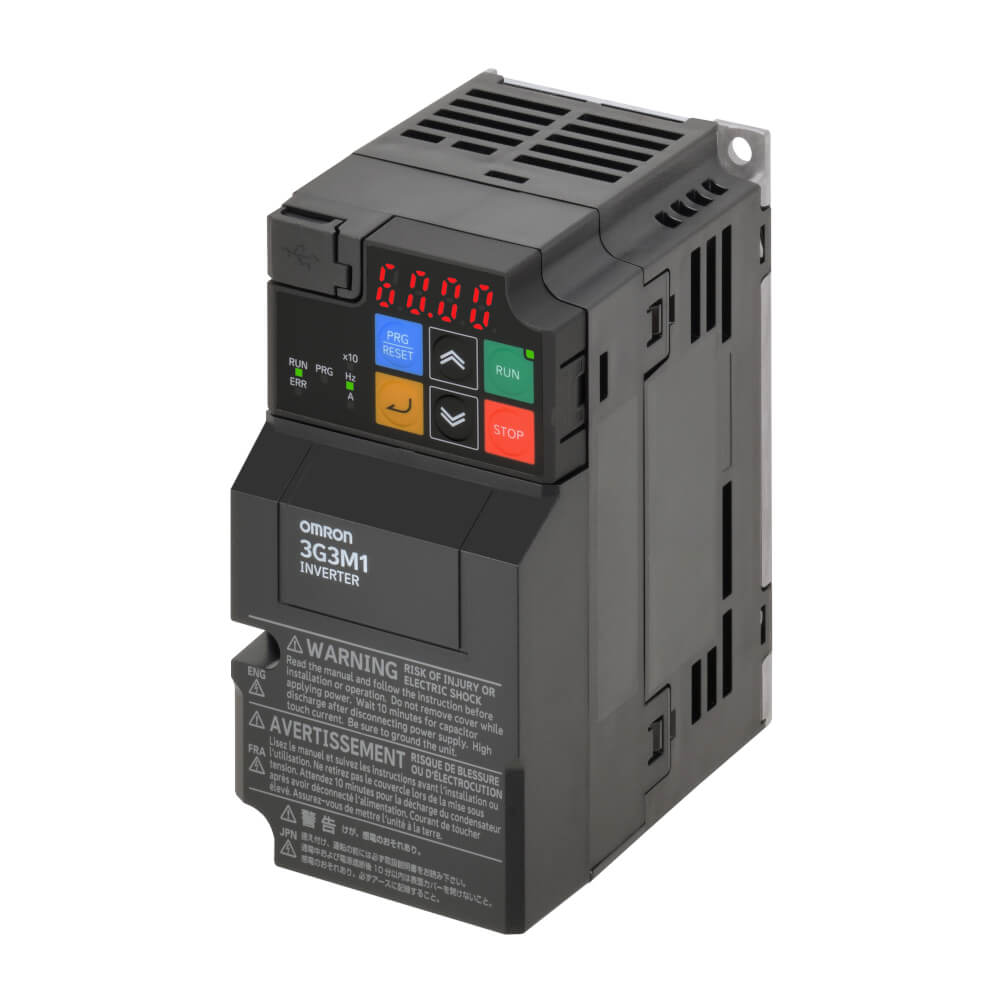

M1 AC Drive, 0.4/0.75 kW (HD/ND), 3.0/3.5 A (HD/ND), 200 VAC, 3~ input, OLV/CLV control, STO (wired), max. output freq. 590 Hz
| Drive control method | Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector, V/f control, Vector control |
| Drive supply voltage | 230 V three phase |
| Max. motor output at constant torque (HD) | 0.4 kW |
| Max. motor output at variable torque (ND) | 0.75 kW |
| Built in EMC filter | ❌ |
| Degree of protection (IP) | IP20 |
| Compatible motor type | Induction or asynchronous motor, Permanent magnet motor |
| Communication port(s) | MODBUS Slave, Serial RS-485, USB |
| Product Height (unpacked) | 127 mm |
| Product Width (unpacked) | 68 mm |
| Product Depth (unpacked) | 113 mm |
| Product Weight (unpacked) | 600 g |
| Finless type | ❌ |
| AX-FER2102-PE | Ferrite choke, 21mm diameter, for 2.2kW inverters and below |
|
|
| AX-FIC4011-SE | M1 RFI filter 11 A, 400 VAC, three phase. |
|
|
| AX-FIC4011-SE-LL | Low Leakage M1 RFI filter 11 A, 400 VAC, three phase. |
|
|
| AX-RAI01570050-DE | AC input reactor, 5 A, 1.57 mH, for 0.4 to 0.75 kW sizes, 200 VAC, 3 phase |
|
|
| AX-RAO07600042-DE | AC output reactor, 4.2 A, 7.6 mH, for 0.7 kW, 200 VAC, 1/3 phase |
|
|
| AX-RC06750061-DE | DC link reactor, 6.1 A, 6.75 mH, for 0.4 kW and 0.7 kW, 200 VAC |
|
|
| AX-RC10700032-DE | DC link reactor, 3.3 A, 10.7 mH, for 0.1 and 0.4 kW, 200 VAC |
|
|
| AX-REM00K1100-IE | Braking resistor, 100 W, 100 ohm nominal |
|
|
| AX-REM00K2100-IE | Braking resistor, 200 W, 100 ohm nominal |
|
Datasheet
EN PDF
Datasheet
EN PDF
