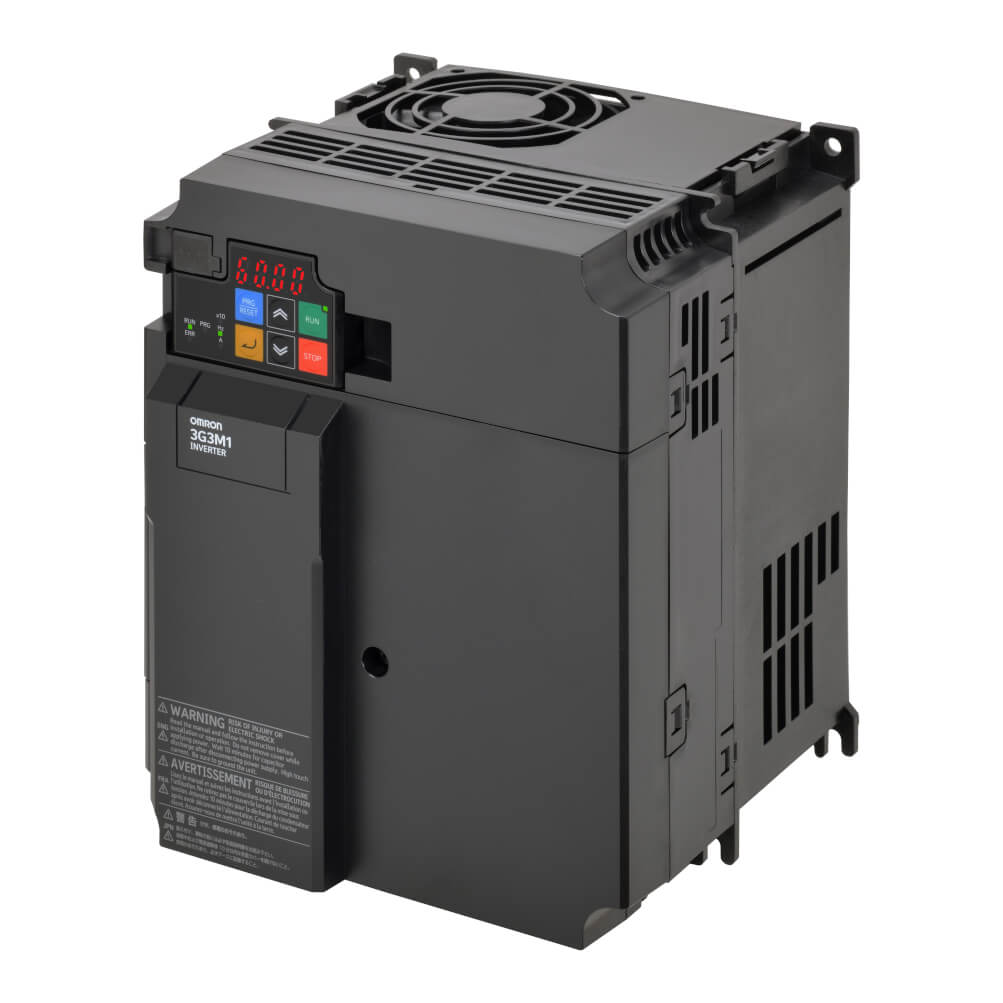

M1 AC Drive, 7.5/11 kW (HD/ND), 33/40 A (HD/ND), 200 VAC, 3~ input, OLV/CLV control, STO (wired), max. output freq. 590 Hz
| Drive control method | Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector, V/f control, Vector control |
| Drive supply voltage | 230 V three phase |
| Max. motor output at constant torque (HD) | 7.5 kW |
| Max. motor output at variable torque (ND) | 11 kW |
| Built in EMC filter | ❌ |
| Degree of protection (IP) | IP20 |
| Compatible motor type | Induction or asynchronous motor, Permanent magnet motor |
| Communication port(s) | MODBUS Slave, Serial RS-485, USB |
| Product Height (unpacked) | 220 mm |
| Product Width (unpacked) | 180 mm |
| Product Depth (unpacked) | 171 mm |
| Product Weight (unpacked) | 4000 g |
| Finless type | ❌ |
| AX-FER2815-PE | Ferrite choke, 28mm diameter, for 15kW inverters and below |
|
|
| AX-FIC4061-SE | M1 RFI filter 61 A, 400 VAC, three phase. |
|
|
| AX-FIC4061-SE-LL | Low Leakage M1 RFI filter 61 A, 400 VAC, three phase. |
|
|
| AX-RAI00180670-DE | AC input reactor, 67 A, 0.18 mH, for 11 to 15 kW sizes, 200 VAC, 3 phase |
|
|
| AX-RAI00210330-DE | AC input reactor, 33 A, 0.21 mH, for 5.5 to 7.5 kW sizes, 200 VAC, 3 phase |
|
|
| AX-RAO00630430-DE | AC output reactor, 43 A, 0.63 mH, for 11 kW, 200 VAC, 3 phase |
|
|
| AX-RC00590614-DE | DC link reactor, 61.4 A, 0.59 mH, for 11 kW, 200 VAC |
|
|
| AX-RC00840437-DE | DC link reactor, 43.7 A, 0.84 mH, for 7.5 kW, 200 VAC |
|
|
| AX-REM00K4020-IE | Braking resistor, 400 W, 20 ohm nominal |
|
|
| AX-REM00K6015-IE | Braking resistor, 600 W, 15 ohm nominal |
|
|
 |
AX-REM00K9020-IE | Braking resistor, 20 ohm, 900 W nominal |
|
