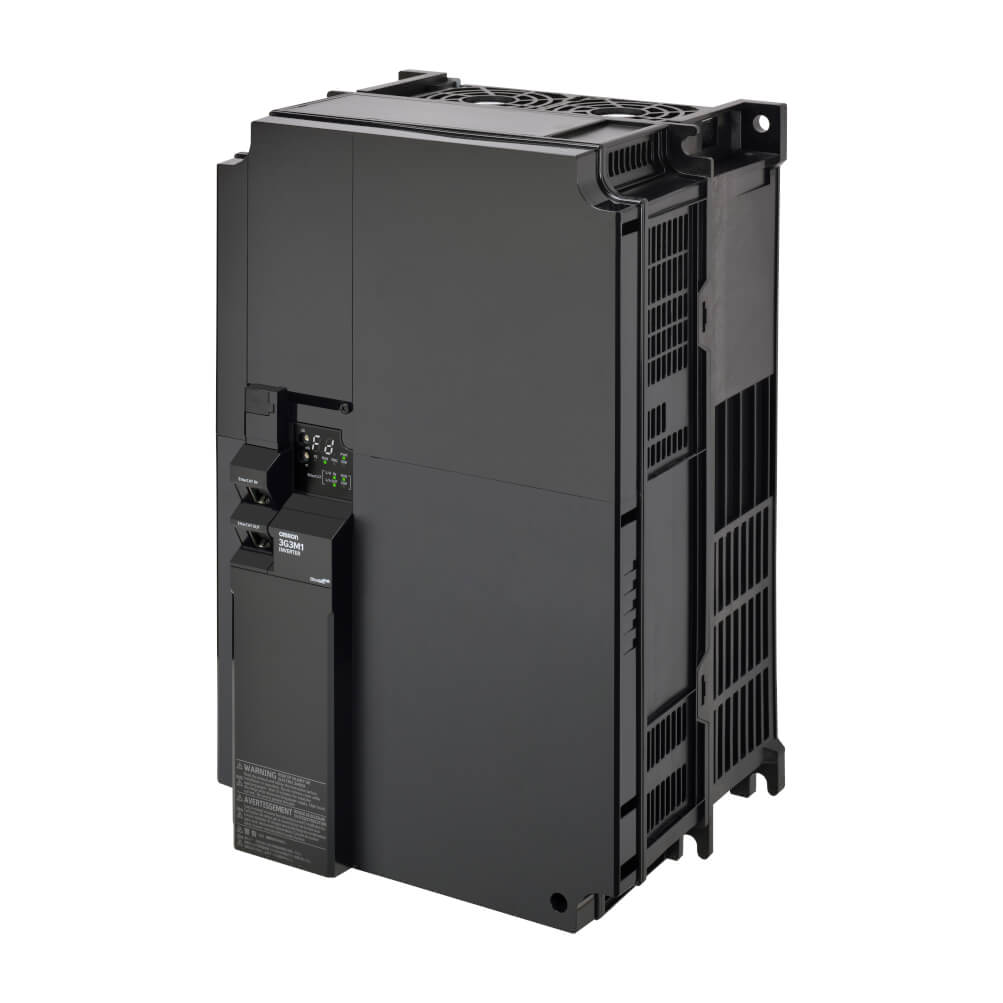

M1 AC Drive, 18.5/22 kW (HD/ND), 76/88 A (HD/ND), 200 VAC, 3~ input, OLV/CLV control, EtherCAT, STO (FSoE + wired), max. output freq. 590 Hz.
| Drive control method | Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector, V/f control, Vector control |
| Drive supply voltage | 230 V three phase |
| Max. motor output at constant torque (HD) | 18.5 kW |
| Max. motor output at variable torque (ND) | 22 kW |
| Built in EMC filter | ❌ |
| Degree of protection (IP) | IP20 |
| Compatible motor type | Induction or asynchronous motor, Permanent magnet motor |
| Communication port(s) | EtherCAT Slave, USB |
| Product Height (unpacked) | 400 mm |
| Product Width (unpacked) | 250 mm |
| Product Depth (unpacked) | 208 mm |
| Product Weight (unpacked) | 11000 g |
| Finless type | ❌ |
| AX-FER5045-PE | Ferrite choke, 50mm diameter, for 45kW inverters and below |
|
|
| AX-RAI00076870-DE | AC input reactor, 87 A, 0.076 mH, for 18.5 kW sizes, 200 VAC, 3 phase |
|
|
| AX-RAI00091000-DE | AC input reactor, 100 A, 0.09 mH, for 18.5 to 22 kW sizes, 200 VAC, 3 phase |
|
|
| AX-RAO00330950-DE | AC output reactor, 95 A, 0.33 mH, for 22 kW , 200 VAC, 3 phase |
|
|
| AX-RAO00390800-DE | AC output reactor, 80 A, 0.39 mH, for 18.5 kW , 200 VAC, 3 phase |
|
|
| AX-RC00301275-DE | DC link reactor, 127.5 A, 0.30 mH, for 18.5 kW and 22 kW , 200 VAC, 3 phase |
|
|
| AX-RC00440859-DE | DC link reactor, 85.9 A, 0.44 mH, for 15 kW, 200 VAC |
|
|
| AX-REM00K9006-IE | Braking resistor, 900 W, 6 ohm nominal |
|
|
| AX-REM02K1004-IE | Braking resistor, 2000 W, 4 ohm nominal |
|
|
| AX-REM03K5006-IE | Braking resistor, 3500 W, 6 ohm nominal |
|
