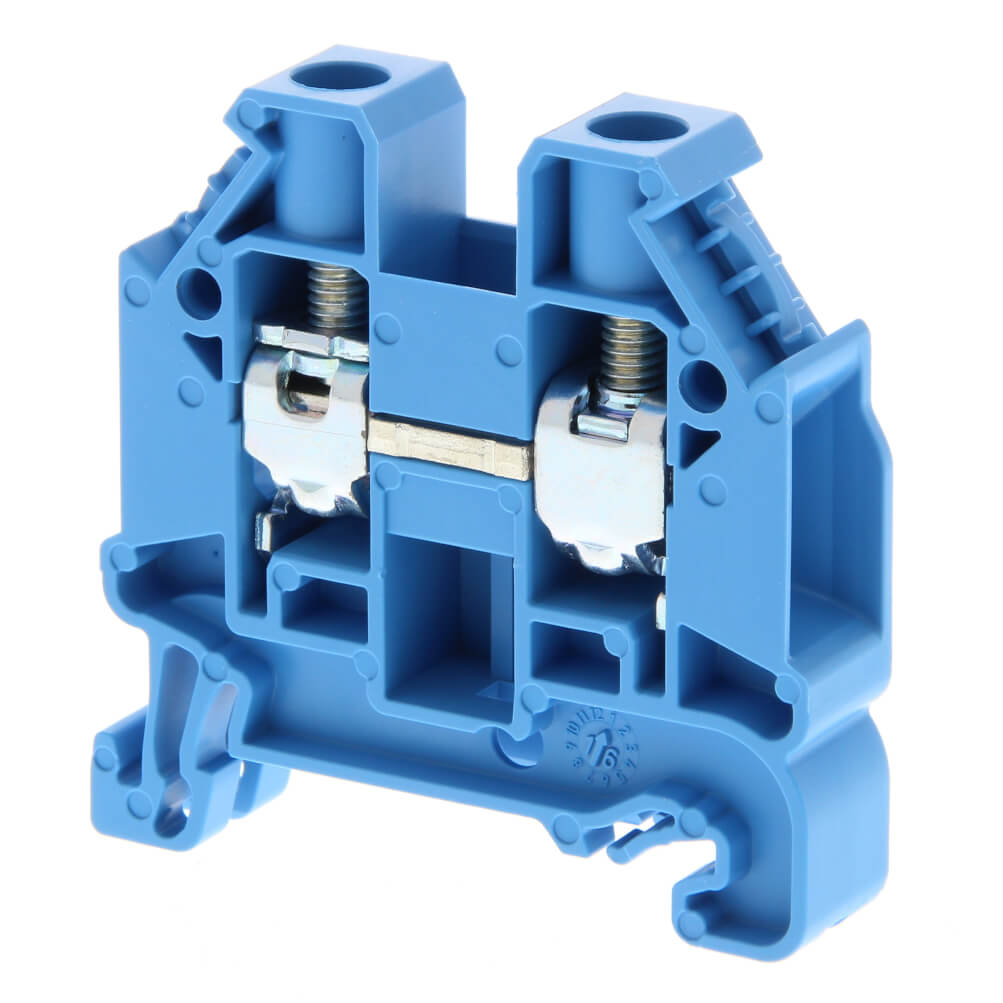

Feed-through DIN rail terminal block with screw connection for mounting on TS 35; nominal cross section 10 mm²; width 10 mm; color blue
| Type of electrical connection 1 | Screw connection |
| Type | Feed through terminal |
| Nominal cross section | 10 mm² |
| Number of levels | 1 |
| Number of clamp position per level | 2 |
| Color | Blue |
| Insulating material | Polyamide |
| Inflammability class of insulation material according to UL94 | V0 |
| Pack size | 50 pc |
| Product Weight (unpacked) | 17 g |
Datasheet
EN PDF
Ground DIN rail terminal block with screw connection for mounting on TS 35; nominal cross section 4 mm²; width 6 mm; color green/yellow
Ground DIN rail terminal block with screw connection for mounting on TS 35; nominal cross section 10 mm²; width 10 mm; color green/yellow
Multi conductor ground DIN rail terminal block with 4 screw connections for mounting on TS 35; nominal cross section 4 mm²; width 6 mm; color green/yellow

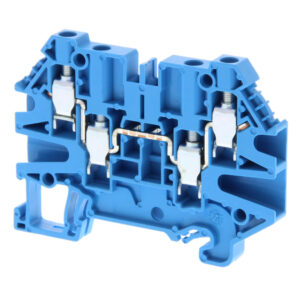

Multi conductor feed-through terminal block with 4 screw connections for mounting on TS 35; nominal cross section 4 mm²; width 6 mm; color blue
