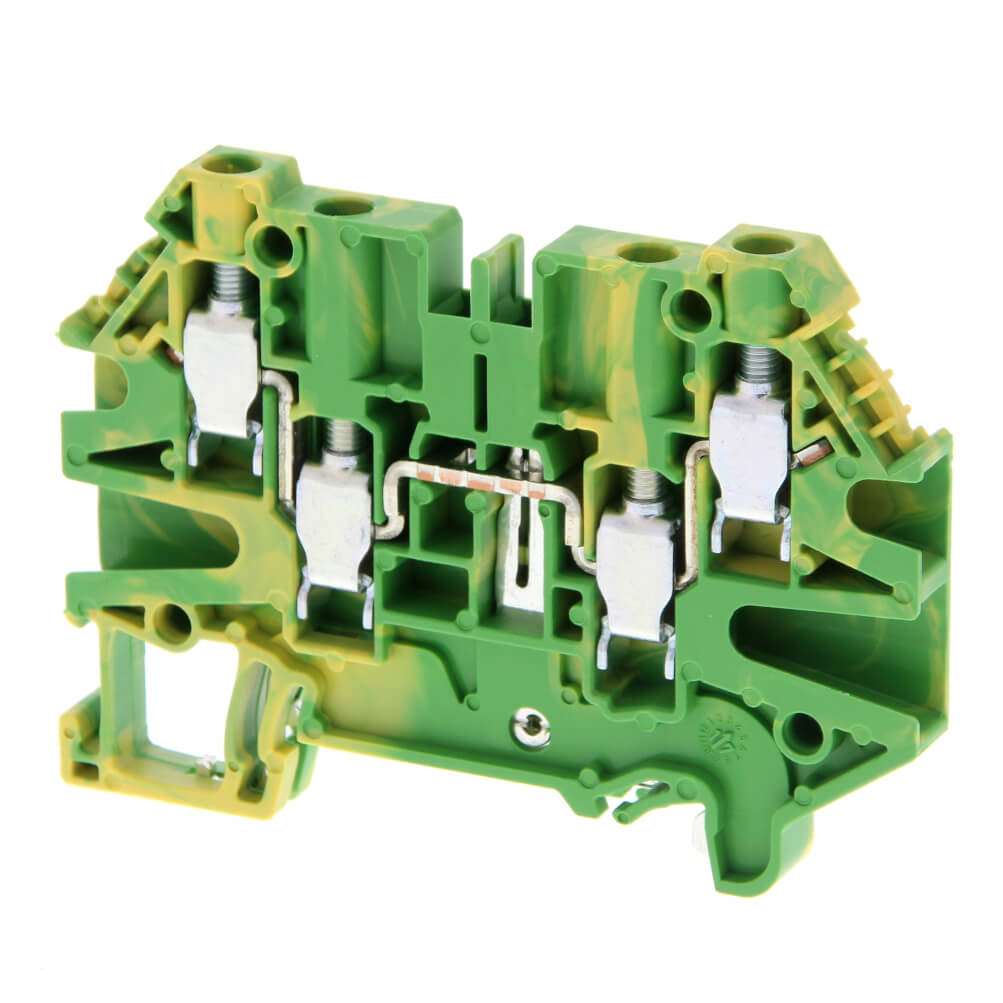

Multi conductor ground DIN rail terminal block with 4 screw connections for mounting on TS 35; nominal cross section 4 mm²; width 6 mm; color green/yellow
| Type of electrical connection 1 | Screw connection |
| Type | Ground terminal |
| Nominal cross section | 4 mm² |
| Number of levels | 1 |
| Number of clamp position per level | 4 |
| Color | Green/yellow |
| Insulating material | Polyamide |
| Inflammability class of insulation material according to UL94 | V0 |
| Pack size | 100 pc |
| Product Weight (unpacked) | 20 g |
Datasheet
EN PDF
