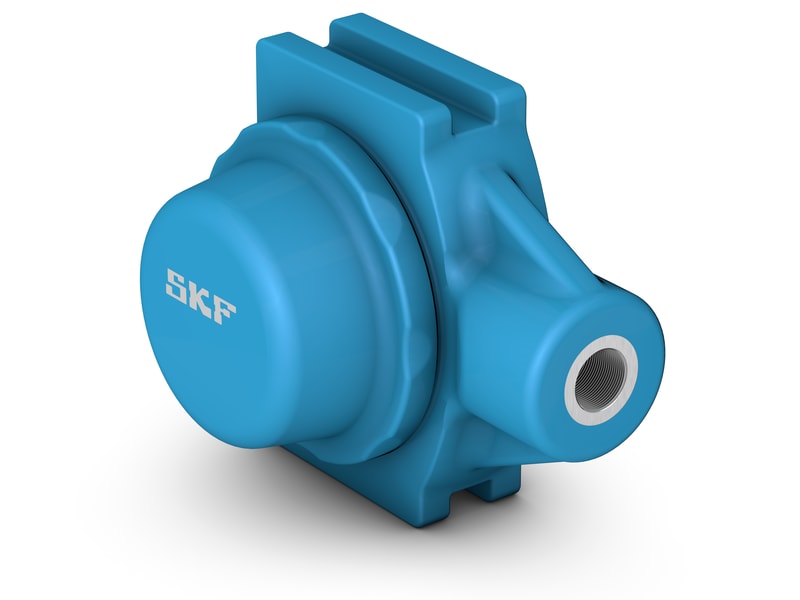

Take-up ball bearing units for the SKF Food Line, consisting of an insert bearing based on a sealed deep groove ball bearing mounted in a composite housing. They are strong, yet lightweight, and chemically resistant to detergents and contaminants. This variant is intended for use in applications where the direction of rotation is alternating. It has an inner ring extended on one side and is locked by tightening a set screw on the inner ring, which makes it easy to mount.
| Compliance with standard |
Not standardized
|
| Purpose specific |
For food and beverage applications
|
| Material, housing |
Composite for the SKF Food Line
|
| Sealing, bearing |
Seal on both sides and flinger on one side
|
| Sealing type, bearing |
Contact, gutter
|
| Sealing, unit |
End cover and back seal
|
| Coating |
Without
|
| d |
50 mm
|
Bore diameter |
|---|---|---|
| A |
45 mm
|
Overall width |
| A1 |
16 mm
|
Width of piloting groove |
| A2 |
36 mm
|
Width of flange in which piloting grooves are provided |
| A5 |
77 mm
|
Standout of end cover |
| B |
43.6 mm
|
Width of inner ring |
| B4 |
9 mm
|
Distance from locking device side face to thread centre |
| H |
117 mm
|
Overall height |
| H1 |
101.8 mm
|
Distance between bottoms of piloting grooves |
| H2 |
46 mm
|
Height of attachment end |
| L |
144 mm
|
Overall length |
| L1 |
90 mm
|
Distance from attachment end face to centre line of spherical seat diameter |
| L3 |
85 mm
|
Length of piloting groove |
| G |
M20
|
Thread size attachment end |
| G1 |
26 mm
|
Thread length |
| s1 |
32.6 mm
|
Distance from locking device side face to raceway centre |
| Basic dynamic load rating | C |
29.6 kN
|
|---|---|---|
| Basic static load rating | C0 |
23.2 kN
|
| Fatigue load limit | Pu |
0.98 kN
|
| Limiting speed |
500 r/min
|
| Mass bearing unit |
1.15 kg
|
| Set screw | G2 |
M10x1
|
|---|---|---|
| Hexagonal key size for set screw |
5 mm
|
|
| Recommended tightening torque for set screw |
16.5 N·m
|
