WSTUC 015-TPZMTake-up composite unit with insert ball bearing, set screw locking and extended inner ring, not standardized, SKF Food Line

WSTUC 015-TPZMTake-up composite unit with insert ball bearing, set screw locking and extended inner ring, not standardized, SKF Food Line

SKU: WSTUC 015-TPZMTake-up composite unit with insert ball bearing, set screw locking and extended inner ring, not standardized, SKF Food Line

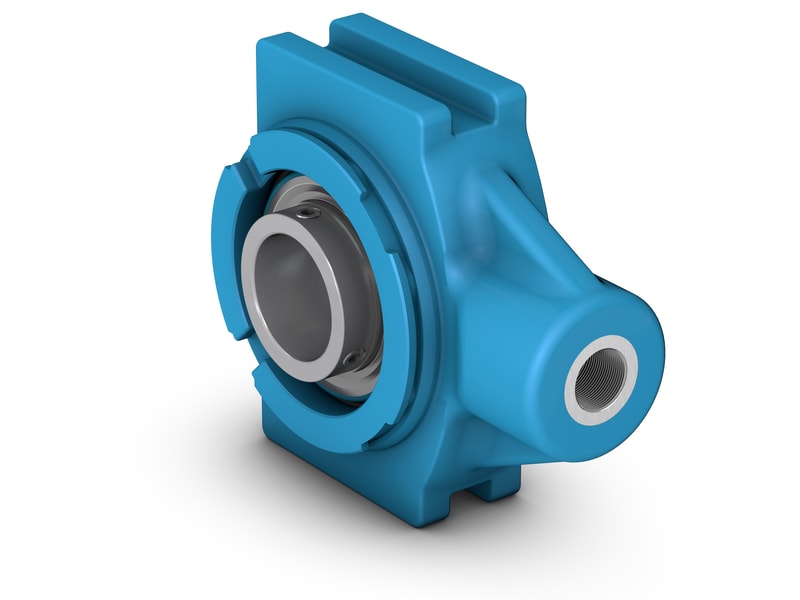

Take-up ball bearing units for the SKF Food Line consisting of an insert bearing based on a sealed deep groove ball bearing mounted in a composite housing. They are strong, yet lightweight, and chemically resistant to detergents and contaminants. Typically mounted in take-up frames, the unit has an inner ring extended on both sides and is locked by tightening a set screw on the inner ring, that makes it easy to mount.

ID:117175

Technical Data
Reviews (0)

Compliance with standard	Not standardized
Purpose specific	For food and beverage applications
Material, housing	Composite for the SKF Food Line
Sealing, bearing	Seal and flinger on both sides
Sealing type, bearing	Contact, gutter
Sealing, unit	Optional end cover
Coating	Zinc-coated bearing

Dimensions

d	23.813 mm	Bore diameter
d₁	≈ 33.74 mm	Shoulder diameter of inner ring
D_c	62 mm	Centring diameter
H_a	6 mm	Groove height for backseal
A	33.5 mm	Overall width
A₁	12 mm	Width of piloting groove
A₂	25 mm	Width of flange in which piloting grooves are provided
A₅	59.9 mm	Standout of end cover
B	34.1 mm	Width of inner ring
B₄	5 mm	Distance from locking device side face to thread centre
H	89 mm	Overall height
H₁	75.8 mm	Distance between bottoms of piloting grooves
H₂	36 mm	Height of attachment end
L	100 mm	Overall length
L₁	64 mm	Distance from attachment end face to centre line of spherical seat diameter
L₃	47 mm	Length of piloting groove
G	5/8-11 UNC	Thread size attachment end
G₁	21 mm	Thread length
s₁	19.8 mm	Distance from locking device side face to raceway centre

Calculation data

Basic dynamic load rating	C	14 kN
Basic static load rating	C₀	7.8 kN
Fatigue load limit	P_u	0.335 kN
Limiting speed		4 300 r/min
		Limiting speed with shaft tolerance h6

Mass

Mass bearing unit

0.38 kg

Mounting information

Set screw	G₂	1/4-28 UNF
Hexagonal key size for set screw		3.175 mm
Recommended tightening torque for set screw		4 N·m
