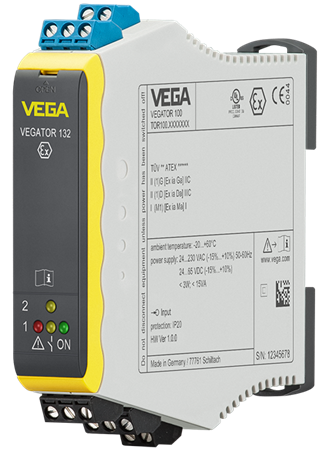

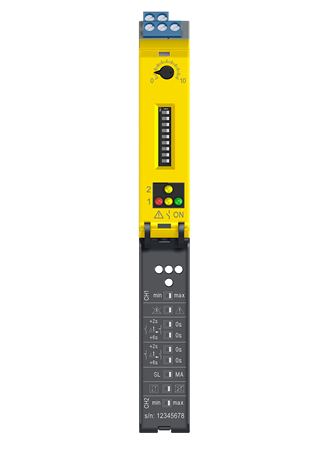

VEGATOR 132

Application area

The VEGATOR 132 is a double channel controller for conductive probes series EL. Applications are level detections and pump controls. In conjunction with multiple rod or cable probes, several VEGATOR 132 can be combined with one probe.

Your benefit

  • Simple installation though carrier rail mounting as well as detachable, coded terminals
  • Integrated fault monitoring with LED display detects short-circuit and line break
  • Two independent level detections or one mon./max. control /two-point control=

SKU: VEGATOR 132

$15,800.00

Technical specifications
Protection rating
IP20

Input
2 x input for conductive rod probe

Output
2 x operating relay (SPDT)

Ambient temperature
-20 … 60 °C

Approvals
Scope
ATEX / Europe
IEC / worldwide
INMETRO / Brazil

Ship approval
GL
LR

Display & adjustment
Adjustment
DIP switch

Indication
LED

34148-EN-Chapter-Controllers.pdf

Product catalog
EN PDF

46841-EN-VEGATOR-132.pdf

Specification sheet
EN PDF

46837-EN-VEGATOR-132.pdf

Operating instructions
EN PDF
