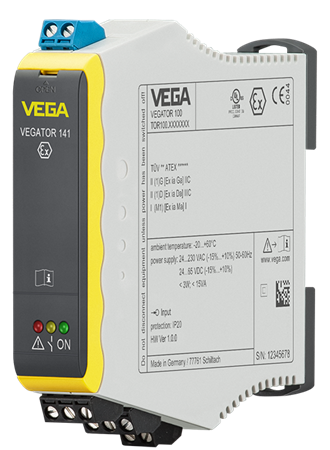

VEGATOR 141

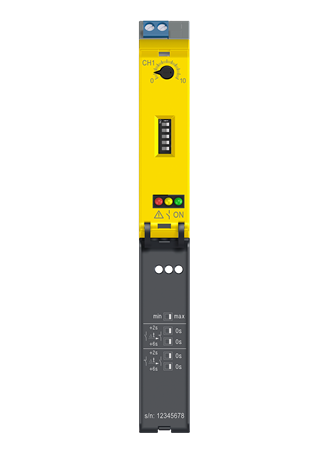

VEGATOR 141 - Image 2

VEGATOR 141

Application area

The VEGATOR 141 is a controller for level detection for continuously measuring 4 … 20 mA sensors. It evaluates the measured values of a sensor and delivers a relay switching signal according to the adjusted switching threshold. Hence simple control tasks can be solved. Typical applications are monitoring functions such as overflow and dry run protection as well as gauge monitoring. Optionally a false signal output is available.

Your benefit

Simple adjustment of the switching point with potentiometer
Simple installation though carrier rail mounting as well as detachable, coded terminals
Visible status indication via LED

SKU: VEGATOR 141

$23,200.00

Technical specifications

Protection rating	IP20
Input	1 x 4 … 20 mA sensor input
Output	1 x operating relay (SPDT) Optionally 1 x fail safe relay output (SPDT)
Ambient temperature	-20 … 60 °C
Signal input (specify)	4 … 20 mA
Signal output (specify)	Operating relay Fail safe relay

Approvals

Scope	ATEX / Europe IEC / worldwide NEPSI / China INMETRO / Brazil
Ship approval	ABS BV CCS GL LR RINA
SIL qualification	SIL2

Display & adjustment

Adjustment	DIP switch
Indication	LED

34148-EN-Chapter-Controllers.pdf

Product catalog
EN PDF

46842-EN-VEGATOR-141.pdf

Specification sheet
EN PDF

46838-EN-VEGATOR-141-Single-channel-signal-conditioning-instrument-for-level-detection.pdf

Operating instructions
EN PDF
