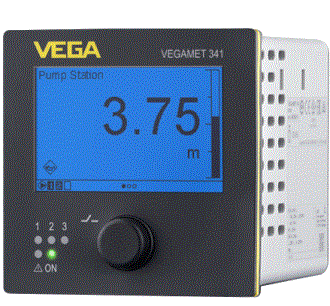

VEGAMET 341 - Image 2

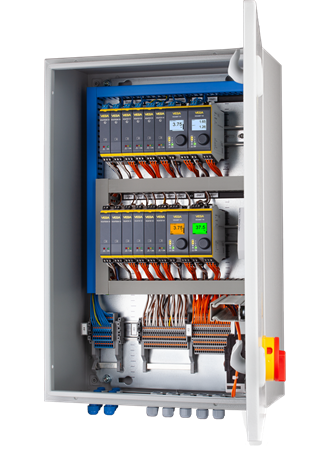

VEGAMET 341 - Image 3

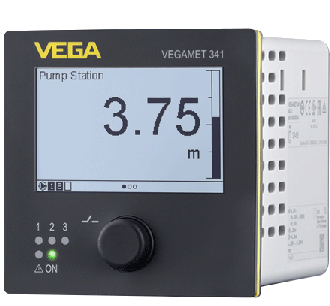

VEGAMET 341 - Image 4

VEGAMET 341

Application area

1 x 4 … 20 mA sensor input, 1 x 4 … 20 mA current output, 3 x operating relay, 1 x fail safe relay (instead of operating relay), Ex approval, separator, ship approval, on-site display, turn/push button and Smartphone operation

The VEGAMET 341 controller feeds the connected 4 … 20 mA sensor, processes the measured values and displays them. The installation housing is ideal for mounting in the control panel. A large display for data visualisation as well as a turn/push button for easy adjustment on site are integrated.With VEGAMET 341, limit values can be reliably monitored and relays, e.g. for overfill protection according to WHG, can be switched. The multifunctional instrument enables pump switching, flow measurement in open flumes or on weirs and summation.Due to its various possibilities, it is suitable for many industrial sectors as well as plant manufacturers.

Your benefit

Complex programming of control tasks is no longer necessary
Simple and safe setup and diagnosis of measuring points via smartphone
Easy-to-read display from a distance, even in sunlight and darkness

SKU: VEGAMET 341

$44,800.00

Technical specifications

Protection rating	IP20/IP40
Input	1 x 4 … 20 mA sensor input
Output	1 x 0/4 … 20 mA current output 3 x operating relay 1x failure relay (instead of operating relay)
Ambient temperature	-20 … 60 °C

Approvals

Scope	ATEX / Europe IEC / worldwide UKEX
Explosion protection	Intrinsic safety “i”

Display & adjustment

Adjustment	Smartphone / Tablet / PC via Bluetooth On-site operation with turn/push button
Indication	LCD matrix display, black and white Backlight with colour change acc. to status

62826-EN-Product-information-VEGAMET-141-142-341-342-841-842-861-862.pdf

Product information
EN PDF

63735-EN-Specification-sheet-VEGAMET-341.pdf

Specification sheet
EN PDF

63730-EN-Operating-Instructions-VEGAMET-341-4-20-mA.pdf

Operating instructions
EN PDF
