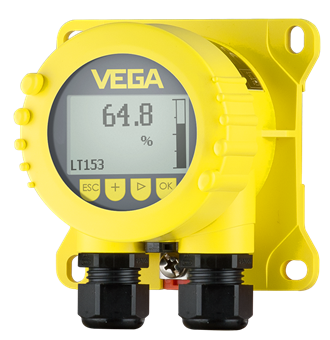

VEGADIS 82

VEGADIS 82

Application area

The VEGADIS 82 is suitable for measured value indication and adjustment of 4 … 20 mA sensors, optionally with HART protocol. The instrument can be looped in any position directly in the signal cable. It operates as pure display instrument in a 4 … 20 mA current loop. Optionally sensors with HART protocol can be operated. The instrument is particularly designed for VEGAPULS (C) 11, 21, 22, 23, 31 and VEGAWELL 52 sensors.

Your benefit

Time and cost savings during the parameter adjustment on site with PLICSCOM
Reliable and simple adjustment through clear text indication with graphic support
Universal use through HART standard parameters

SKU: VEGADIS 82

$24,400.00

Technical specifications

Housing material	Plastic Aluminium Stainless steel (precision casting)
Protection rating	IP66/IP67
Ambient temperature	-20 … 70 °C
Signal input (specify)	4 … 20 mA/HART

Approvals

Scope	ATEX / Europe CSA / Canada FM / USA IEC / worldwide UKR Sepro / Ukraine CCOE / India UKEX
Explosion protection	Intrinsic safety “i” Flameproof enclosure “d” Dust explosion protection through housing “t”
Ship approval	BV CCS DNV

Display & adjustment

Adjustment	PLICSCOM
Indication	Display/adjustment module PLICSCOM

34147-EN-Chapter-Software-and-Display-instruments.pdf

Product catalog
EN PDF

47647-EN-VEGADIS-82-4-20-mA-HART.pdf

Specification sheet
EN PDF

45300-EN-VEGADIS-82-4-20-mA-HART.pdf

Operating instructions
EN PDF

46591-EN-VEGADIS-82-4-20-mA.pdf

Operating instructions
EN PDF
