A30-Vega Signal conditioning Indicating instruments

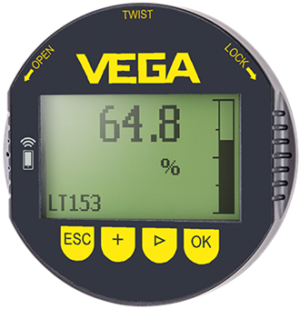

PLICSCOM

Application area

Universal display and adjustment module suitable for all sensors of the VEGA plics® family, VEGABAR series 50/60/80, VEGADIF 65/85, VEGACAL series 60, VEGAFLEX series 60/80, VEGAPULS series 60, VEGASON series 60, PROTRAC as well as VEGADIS series 80.

Your benefit

Simple to detach, hence use also with other sensors
Simple and reliable adjustment of the plics® sensors through clear text indication with comprehensive graphic support
Minimum time expenditure through reliable function and clear, graphic-capable LC display with 4-key operation as well as integrated lighting
Optional possibility of wireless operation via Bluetooth with smartphone/tablet/PC as well as magnetic pen operation in case of housing lid with inspection window

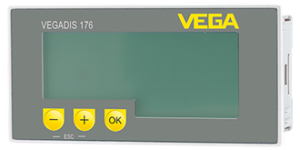

VEGADIS 176

$22,000.00

Application area

External display and adjustment module for panel mounting without external energy Application areaThe VEGADIS 176 is an external display and adjustment module without additional external energy. It is used for separate measured value indication of all standardized 4 … 20 mA circuits. Your benefit- Universal use through five-digit, scalable 17 mm display with backlight- Reliable function and various application possibilities thanks to a compact, robust housing with high protection rating in the front area- The low voltage drop of < 1 V allows the use in most 4 … 20 mA circuits Technical dataDisplay:|;digitalVoltage drop:|;< 1 VSignal: |;4 … 20 mAMounting: |;panel mounting

Your benefit

Reliable function and wide range of application thanks to compact, rugged housing with high protection rating
Universal use through 5-digit, backlit, scalable 17 mm display
The low voltage drop of <1 V allows use in most 4 ... 20 mA circuits

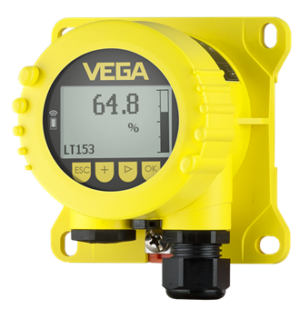

VEGADIS 81

$30,500.00

Application area

The VEGADIS 81 is an external, digital display and adjustment unit for all plics® sensors. The instrument is mounted in a distance of up to 50 m away from the sensor where it is easily accessible. It is directly connected to the electronics of the sensor from which it is also powered.

Your benefit

Reading and adjustment comfort through installation in 90° steps
Simple adjustment via 4 keys and clearly structured program guidance
Good readability of the display through clear text indication with graphic support (PLICSCOM)
Measured value indication and sensor adjustment in an easily accessible position
Optional possibility of wireless operation via Bluetooth with smartphone/tablet/PC as well as magnetic pen operation in case of housing lid with inspection window

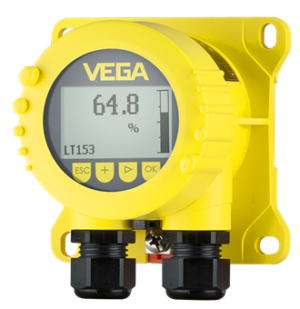

VEGADIS 82

$24,400.00

Application area

The VEGADIS 82 is suitable for measured value indication and adjustment of 4 … 20 mA sensors, optionally with HART protocol. The instrument can be looped in any position directly in the signal cable. It operates as pure display instrument in a 4 … 20 mA current loop. Optionally sensors with HART protocol can be operated. The instrument is particularly designed for VEGAPULS (C) 11, 21, 22, 23, 31 and VEGAWELL 52 sensors.

Your benefit

Time and cost savings during the parameter adjustment on site with PLICSCOM
Reliable and simple adjustment through clear text indication with graphic support
Universal use through HART standard parameters

PLICSCOM

Application area

Your benefit

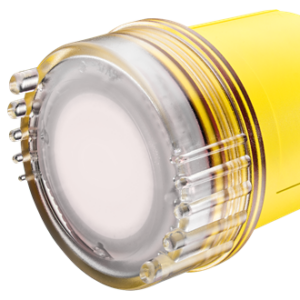

PLICSLED
