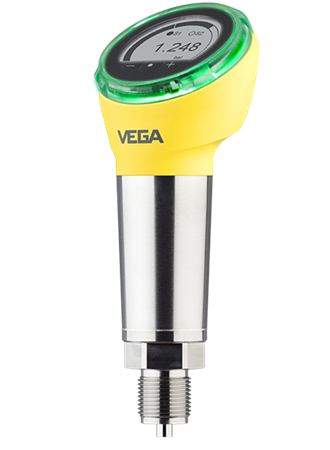

VEGABAR 39

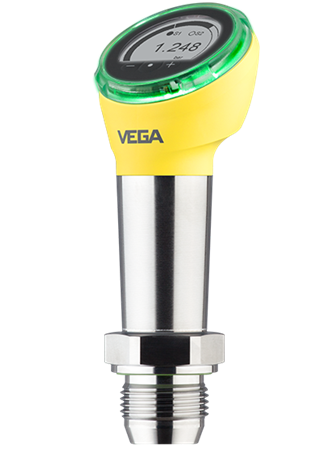

VEGABAR 39 - Image 2

VEGABAR 39

Application area

From thread ½”, hygienic connections, universal connection G1″ for hygiene adapter, 4 … 20 mA, three-wire: PNP/NPN, 4 … 20 mA, IO-Link, Ex and hygiene approval, coloured 360° status display, on-site display and 3-button operation

VEGABAR 39 is a universal pressure transmitter with a metallic measuring cell for measuring gases, vapours and liquids up 130 °C. The optional universal connection for hygienic adapters ensures reduced installation effort and leaner stock keeping. The sensor has a display with on-site operation and coloured 360° status display.

Your benefit

Coloured 360° status display, display and on-site operation with VDMA menu structure
Universally applicable due to fully welded metallic measuring cell
Easy integration into control systems through IO-Link communication

SKU: VEGABAR 39

$32,000.00

Technical specifications

Approvals

Measuring range – Pressure	-1 … 1000 bar [Bar – kPa – psi]
Process temperature	-40 … 130 °C [°C – °F]
Accuracy	0.3 %
Materials, wetted parts	316L
Threaded connection	≥ G½, ≥ ½ NPT
Hygenic fittings	Clamp ≥ 2″, DN50 – DIN32676, ISO2852 Clamp ≥ 1″ – DIN32676, ISO2852 Clamp ≥ 1½” – DIN32676, ISO2852 Slotted nut ≥ DN25 – DIN 11851 Slotted nut ≥ DN32 – DIN 11851 SMS 1145 DN51 SMS DN38 Hygienic fittings ≥ DN25 – DIN11864-1-A Hygienic fittings ≥ DN40 – DIN11864-1-A Varivent N50-40 SMS DN25 Ingold connection PN10 Varivent F25
Housing material	Plastic
Protection rating	IP66/IP67
Output	4 … 20 mA Three-wire (PNP/NPN, 4 … 20 mA) IO-Link
Ambient temperature	-40 … 70 °C

Display & adjustment

Scope	ATEX / Europe CSA / Canada FM / USA IEC / worldwide NEPSI / China UKR Sepro / Ukraine INMETRO / Brazil CCOE / India KTL Korea TIIS / Japan IA c-UL-us UKEX
Explosion protection	Intrinsic safety “i”
Foodstuffs/Pharma	3A EHEDG FDA EG1935/2004
Ship approval	ABS BV CCS DNV LR NK RINA

Adjustment	Smartphone / Tablet / PC via Bluetooth PC, PACTware and DTM, IODD
Indication	Graphic-capable clear text indication with background lighting 360° status display

34144-EN-Chapter-Process-pressure

Product catalog
EN PDF

55579-EN-Product-information-VEGABAR-18-19-28-29-38-39

Product information
EN PDF

57099-EN-Specification-sheet-VEGABAR-39-two-wire-4-20-mA

Specification sheet
EN PDF

57089-EN-Operating-instructions-VEGABAR-39-two-wire-4-20-mA

Operating instructions
EN PDF
