Showing all 9 results

VEGABAR 18
$19,800.00
Application area

4 ... 20 mA, thread ½"

VEGABAR 18 is a universal pressure transmitter with 4 ... 20 mA output and ceramic measuring cell for measurement of gases, vapours and liquids up to 100 °C. VEGABAR 18 is an economical solution for a variety of applications in all industrial sectors.
Your benefit

High plant availability through maximum overload and vacuum resistance of the ceramic measuring cell

Price-favourable version with small mounting dimensions
View product

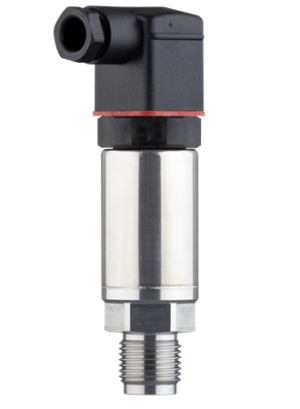

VEGABAR 19
$19,600.00
Application area

4 ... 20 mA, thread ½"

VEGABAR 19 is a universal pressure transmitter with 4 ... 20 mA output and metal measuring cell for measurement of gases, vapours and liquids up to 100 °C. VEGABAR 19 is an economical solution for a variety of applications in all industrial sectors.
Your benefit

Price-favourable version with small mounting dimensions

Universally applicable due to fully welded metallic measuring cell
View product
VEGABAR 28
$26,400.00
Application area

From thread ½", hygienic connections, universal connection G1" for hygiene adapter, 4 ... 20 mA, three-wire: PNP/NPN, 4 ... 20 mA, IO-Link, Ex and hygiene approval, coloured 360° status display

VEGABAR 28 is a universal pressure transmitter with ceramic measuring cell for measurement of gases, vapours and liquids up to 130 °C. The optional universal connection for hygienic adapters ensures reduced installation effort and leaner stock keeping.
Your benefit

Convenient wireless setup and diagnostics with smartphone

Coloured 360° status display, adjustable

Easy integration into control systems through IO-Link communication
View product

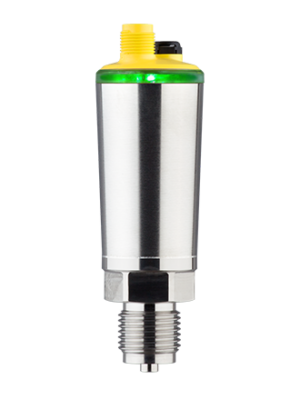

VEGABAR 29
$25,600.00
Application area

From thread ½", hygienic connections, universal connection G1" for hygiene adapter, 4 ... 20 mA, three-wire: PNP/NPN, 4 ... 20 mA, IO-Link, Ex and hygiene approval, coloured 360° status display

VEGABAR 29 is a universal pressure transmitter with metal measuring cell for measurement of gases, vapours and liquids up to 130 °C. The optional universal connection for hygienic adapters ensures reduced installation effort and leaner stock keeping.
Your benefit

Universally applicable due to fully welded metallic measuring cell

Coloured 360° status display, adjustable

Easy integration into control systems through IO-Link communication
View product
VEGABAR 38
$35,000.00
Application area

From thread ½", hygienic connections, universal connection G1" for hygiene adapter, 4 ... 20 mA, three-wire: PNP/NPN, 4 ... 20 mA, IO-Link, Ex and hygiene approval, coloured 360° status display, on-site display and 3-button operation

VEGABAR 38 is a universal pressure transmitter with ceramic measuring cell for measuring gases, vapours and liquids up to 130 °C. The optional universal connection for hygienic adapters ensures reduced installation effort and leaner stock keeping. The sensor has a display with on-site operation and coloured 360° status display.
Your benefit

High plant availability through maximum overload and vacuum resistance of the ceramic measuring cell

Coloured 360° status display, display and on-site operation with VDMA menu structure

Easy integration into control systems through IO-Link communication
View product

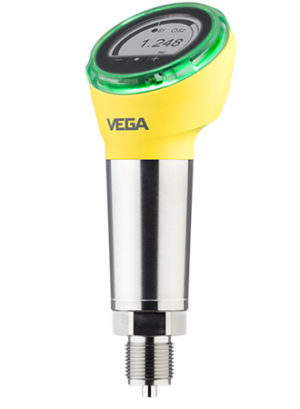

VEGABAR 39
$32,000.00
Application area

From thread ½", hygienic connections, universal connection G1" for hygiene adapter, 4 ... 20 mA, three-wire: PNP/NPN, 4 ... 20 mA, IO-Link, Ex and hygiene approval, coloured 360° status display, on-site display and 3-button operation

VEGABAR 39 is a universal pressure transmitter with a metallic measuring cell for measuring gases, vapours and liquids up 130 °C. The optional universal connection for hygienic adapters ensures reduced installation effort and leaner stock keeping. The sensor has a display with on-site operation and coloured 360° status display.
Your benefit

Coloured 360° status display, display and on-site operation with VDMA menu structure

Universally applicable due to fully welded metallic measuring cell

Easy integration into control systems through IO-Link communication
View product

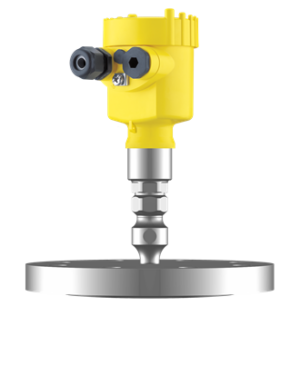

VEGABAR 81
Application area

Reliable measurement of highly corrosive and hot media. Can be combined with any other sensor of VEGABAR Series 80 for electronic differential pressure measurement.

The VEGABAR 81 is a pressure transmitter with chemical seal for pressure and level measurement. The chemical seal systems of VEGABAR 81 adapted to the process, ensure a reliable measurement even with highly corrosive and hot products. The simple connection of VEGABAR series 80 sensors as electronic differential pressure opens new possibilities for the measurement of differential pressures.
Your benefit

Simple adaptation thanks to various configuration options

Reliable measurement with temperatures up to 400 °C

Reliable measurement independent of foam generation or tank installations
View product

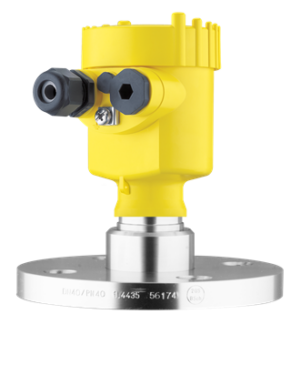

VEGABAR 82
Application area

Universally applicable pressure transmitter. The ceramic measuring cell is resistant to temperature shocks. Can be combined with any other sensor of VEGABAR Series 80 for electronic differential pressure measurement.

The VEGABAR 82 pressure transmitter can be used universally for the measurement of gases, vapours and liquids. Substances such as sand can be handled easily thanks to the abrasion-resistant ceramic measuring cell. The VEGABAR 82 offers maximum reliability. The transmitter can be used in all industries. The simple connection of VEGABAR series 80 sensors as electronic differential pressure opens new possibilities for the measurement of differential pressures.
Your benefit

Low maintenance costs thanks to wear-free ceramic measuring cell

High plant availability through maximum overload and vacuum resistance of the ceramic measuring cell

Measurement down to the last drop through smallest measuring ranges with high accuracy
View product
VEGABAR 83
Application area

For measurement of liquids and viscous products with high process pressure.

The VEGABAR 83 is a pressure transmitter for pressure measurement of gases, vapours and liquids in all industries. The VEGABAR 83 offers special advantages in applications with high pressures. The simple connection of VEGABAR series 80 sensors as electronic differential pressure opens new possibilities for the measurement of differential pressures.
Your benefit

Maximum dependability and safety through proven technology

High reliability through vacuum resistant version

Universal use due to welded measuring cell
View product
