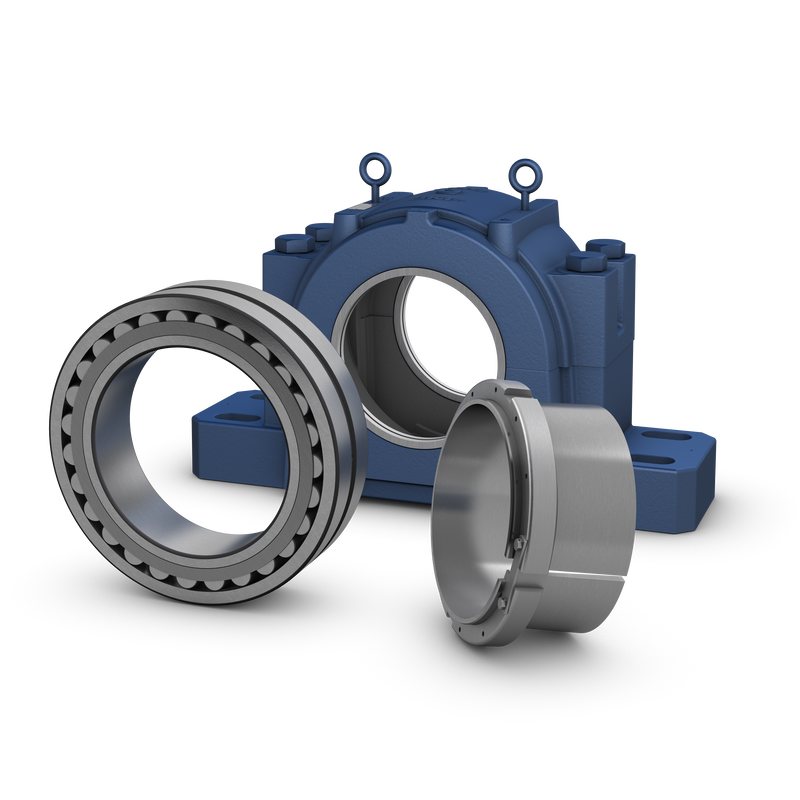

SAF and SAW split pillow blocks use a two-piece, cast metal housing with inch dimensions. With the included SKF bearings, seals, and related components, they provide a tailored solution to achieve maximum service life and reduce maintenance requirements for rotating equipment. These pillow blocks have been developed to be the best choice for design, quality, robustness, and cost efficiency.
| da |
254 mm
|
Shaft diameter |
|---|---|---|
| Da |
420 mm
|
Diameter of bearing seat |
|
G7
|
Tolerance class of bearing seat | |
| Ca |
147.803 mm
|
Width of bearing seat |
| A1 |
228.6 mm
|
Housing foot width |
| A2 |
315.119 mm
|
Width |
| H |
495.3 mm
|
Height |
| H1 |
250.825 mm
|
Centre height of bearing seat |
| H2 |
101.6 mm
|
Foot height |
| J |
min. 666.75 mm
|
Distance between attachment bolts |
| J |
max. 749.3 mm
|
Distance between attachment bolts |
| J1 |
139.7 mm
|
Distance between attachment bolts, axial |
| L |
869.95 mm
|
Length |
| N1 |
41.275 mm
|
Width of attachment bolt hole |
| S |
0 mm
|
Offset of locating bearing |
| R1 |
163.513 mm
|
Distance of drain plug from centre |
|---|---|---|
| R2 |
50.8 mm
|
Height of drain plug position |
| RG |
1-11.5 NPT
|
Thread of drain hole |
| PG |
1/4-18 NPT
|
Thread for grease fitting in cap |
| Dynamic load rating | C |
1 797 kN
|
|---|---|---|
| Static load rating | C0 |
2 850 kN
|
| Fatigue load limit | Pu |
224 kN
|
| Reference speed |
1 300 r/min
|
|
| Limiting speed |
1 600 r/min
|
|
| Limiting value | e |
0.23
|
| Calculation factor | Y1 |
2.9
|
| Calculation factor | Y2 |
4.4
|
| Calculation factor | Y0 |
2.8
|
| P60 |
449 kN
|
Safe load at 60° load angle |
|---|---|---|
| P90 |
271 kN
|
Safe load at 90° load angle |
| P120 |
169 kN
|
Safe load at 120° load angle |
| P150 |
151 kN
|
Safe load at 150° load angle |
| P180 |
185 kN
|
Safe load at 180° load angle |
| Pa |
120 kN
|
Safe load, axial |
| Housing material |
Cast iron
|
| Paint, corrosion protection |
Paint – in accordance with ISO 12944-2, corrosivity category C2
|
| Mass |
324 kg
|
| Cap bolt |
1 1/2-6 UNC x 8-1/2
|
|
| Number of cap bolts |
4
|
|
| Recommended tightening torque for cap bolts |
1 016.863 N·m
|
|
| SAE grade of cap bolt |
5
|
|
| Eye bolt |
1/2-13 UNC
|
|
| Number of eye bolts |
2
|
|
| Recommended diameter of attachment bolts | G |
38.1 mm
|
| Required locating (stabilizing) ring | ||
| Number of required locating rings |
2
|
| Initial grease fill, 20% |
5 819.59 g
|
|
| Initial grease fill, 40% |
9 344.003 g
|
|
| Oil level | h |
73.025 mm
|
