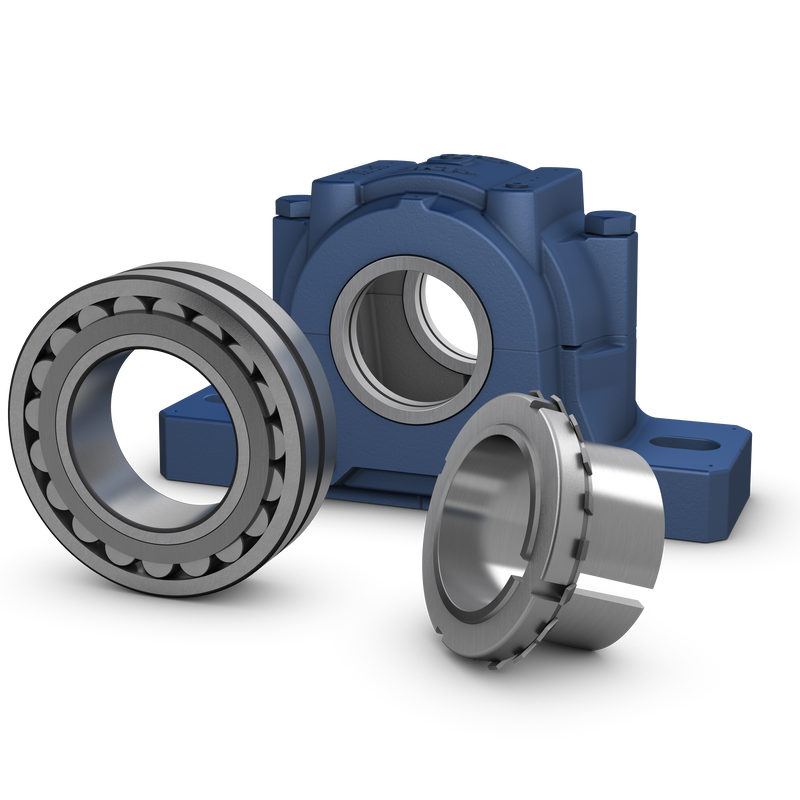

SAF and SAW split pillow blocks use a two-piece, cast metal housing with inch dimensions. With the included SKF bearings, seals, and related components, they provide a tailored solution to achieve maximum service life and reduce maintenance requirements for rotating equipment. These pillow blocks have been developed to be the best choice for design, quality, robustness, and cost efficiency.
| da |
38.1 mm
|
Shaft diameter |
|---|---|---|
| Da |
85 mm
|
Diameter of bearing seat |
|
G7
|
Tolerance class of bearing seat | |
| Ca |
28.804 mm
|
Width of bearing seat |
| A1 |
60.325 mm
|
Housing foot width |
| A2 |
88.9 mm
|
Width |
| H |
112.713 mm
|
Height |
| H1 |
57.15 mm
|
Centre height of bearing seat |
| H2 |
20.638 mm
|
Foot height |
| J |
min. 158.75 mm
|
Distance between attachment bolts |
| J |
max. 177.8 mm
|
Distance between attachment bolts |
| L |
209.55 mm
|
Length |
| N1 |
15.875 mm
|
Width of attachment bolt hole |
| S |
2.778 mm
|
Offset of locating bearing |
| R1 |
28.575 mm
|
Distance of drain plug from centre |
|---|---|---|
| R2 |
12.7 mm
|
Height of drain plug position |
| RG |
1/8-27 NPT
|
Thread of drain hole |
| PG |
1/8-27 NPT
|
Thread for grease fitting in cap |
| Dynamic load rating | C |
104 kN
|
|---|---|---|
| Static load rating | C0 |
100 kN
|
| Fatigue load limit | Pu |
10.8 kN
|
| Reference speed |
7 500 r/min
|
|
| Limiting speed |
10 000 r/min
|
|
| Limiting value | e |
0.26
|
| Calculation factor | Y1 |
2.6
|
| Calculation factor | Y2 |
3.9
|
| Calculation factor | Y0 |
2.5
|
| P60 |
20.9 kN
|
Safe load at 60° load angle |
|---|---|---|
| P90 |
12.5 kN
|
Safe load at 90° load angle |
| P120 |
7.56 kN
|
Safe load at 120° load angle |
| P150 |
6.67 kN
|
Safe load at 150° load angle |
| P180 |
8.01 kN
|
Safe load at 180° load angle |
| Pa |
5.2 kN
|
Safe load, axial |
| Housing material |
Cast iron
|
| Paint, corrosion protection |
Paint – in accordance with ISO 12944-2, corrosivity category C2
|
| Mass |
5.47 kg
|
| Cap bolt |
7/16-14 UNC x 2-1/2
|
|
| Number of cap bolts |
2
|
|
| Recommended tightening torque for cap bolts |
61.012 N·m
|
|
| SAE grade of cap bolt |
5
|
|
| Recommended diameter of attachment bolts | G |
12.7 mm
|
| Required locating (stabilizing) ring | ||
| Number of required locating rings |
1
|
| Initial grease fill, 20% |
40.823 g
|
|
| Initial grease fill, 40% |
68.039 g
|
|
| Oil level | h |
24.606 mm
|
