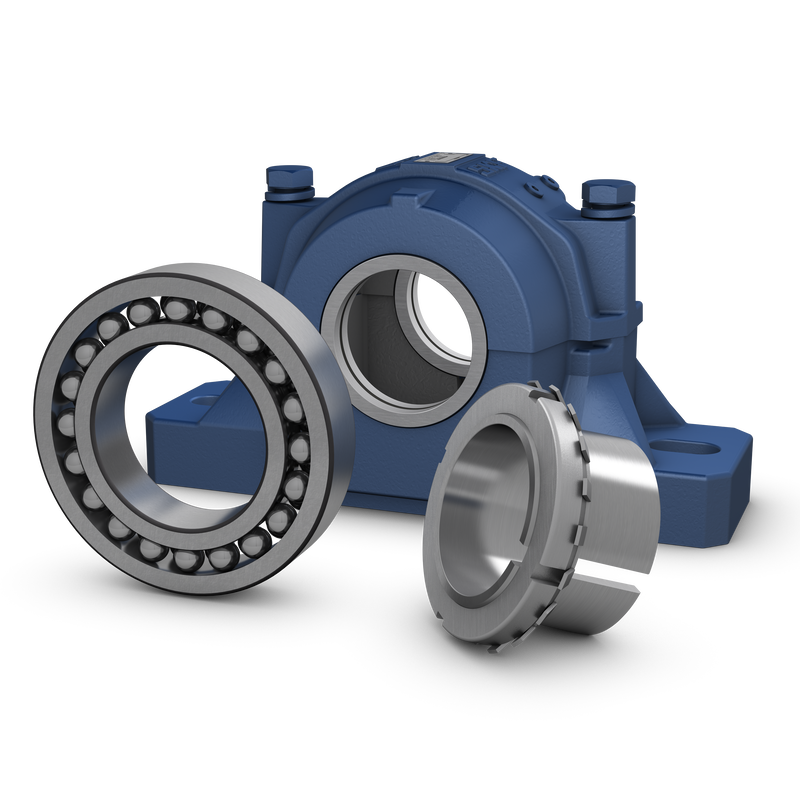

SAF and SAW split pillow blocks use a two-piece, cast metal housing with inch dimensions. With the included SKF bearings, seals, and related components, they provide a tailored solution to achieve maximum service life and reduce maintenance requirements for rotating equipment. These pillow blocks have been developed to be the best choice for design, quality, robustness, and cost efficiency.
| da |
55.563 mm
|
Shaft diameter |
|---|---|---|
| Da |
140 mm
|
Diameter of bearing seat |
|
G7
|
Tolerance class of bearing seat | |
| Ca |
57.785 mm
|
Width of bearing seat |
| A1 |
88.9 mm
|
Housing foot width |
| A2 |
134.938 mm
|
Width |
| H |
167.481 mm
|
Height |
| H1 |
88.9 mm
|
Centre height of bearing seat |
| H2 |
31.75 mm
|
Foot height |
| J |
min. 244.475 mm
|
Distance between attachment bolts |
| J |
max. 279.4 mm
|
Distance between attachment bolts |
| L |
330.2 mm
|
Length |
| N1 |
22.225 mm
|
Width of attachment bolt hole |
| S |
0 mm
|
Offset of locating bearing |
| R1 |
53.181 mm
|
Distance of drain plug from centre |
|---|---|---|
| R2 |
21.431 mm
|
Height of drain plug position |
| RG |
3/8-18 NPT
|
Thread of drain hole |
| PG |
1/8-27 NPT
|
Thread for grease fitting in cap |
| Dynamic load rating | C |
65 kN
|
|---|---|---|
| Static load rating | C0 |
25.5 kN
|
| Fatigue load limit | Pu |
1.25 kN
|
| Reference speed |
8 500 r/min
|
|
| Limiting speed |
6 000 r/min
|
|
| Limiting value | e |
0.22
|
| Calculation factor | Y1 |
2.9
|
| Calculation factor | Y2 |
4.5
|
| Calculation factor | Y0 |
2.8
|
| P60 |
83.2 kN
|
Safe load at 60° load angle |
|---|---|---|
| P90 |
49.8 kN
|
Safe load at 90° load angle |
| P120 |
30.2 kN
|
Safe load at 120° load angle |
| P150 |
26.7 kN
|
Safe load at 150° load angle |
| P180 |
31.6 kN
|
Safe load at 180° load angle |
| Pa |
20.5 kN
|
Safe load, axial |
| Housing material |
Cast iron
|
| Paint, corrosion protection |
Paint – in accordance with ISO 12944-2, corrosivity category C2
|
| Mass |
18.6 kg
|
| Cap bolt |
5/8-11 UNC x 3-1/2
|
|
| Number of cap bolts |
2
|
|
| Recommended tightening torque for cap bolts |
298.28 N·m
|
|
| SAE grade of cap bolt |
8
|
|
| Recommended diameter of attachment bolts | G |
19.05 mm
|
| Required locating (stabilizing) ring | ||
| Number of required locating rings |
2
|
| Initial grease fill, 20% |
149.685 g
|
|
| Initial grease fill, 40% |
240.404 g
|
|
| Oil level | h |
36.513 mm
|
