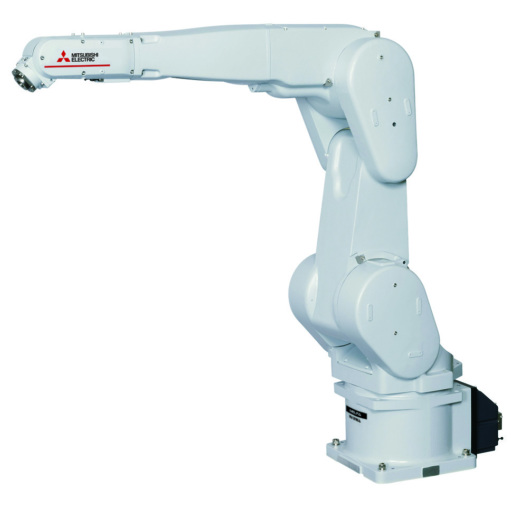

| Series | RV-FR SERIES |
|---|---|
| Type | VERTICAL |
| Payload (kg) | 7 |
| Installation Method | FLOOR, CEILING, WALL |
| Speed (mm/s) | 15300 |
| Repeatability (mm) | 0,06 |
| Cycle Time (s) | 0,63 |
| Max. Reach Radius (mm) | 1503 |
| Operating Range J1 (deg) | 380 |
| Operating Range J2 (deg) | 240 |
| Operating Range J3 (deg) | 167,5 |
| Operating Range J4 (deg) | 400 |
| Operating Range J5 (deg) | 240 |
| Operating Range J6 (deg) | 720 |
| Environment specification | OIL MIST |
| Controller Type | CR800-R |
| Protection Class | IP67 |
| Power Supply 1 Phase (VAC) | 230 |
| Power Supply 3 Phase (VAC) | 200-230 |
| Power Consumption (VA) | 3000 |
| Width (mm) | 347 |
|---|---|
| Height (mm) | 1152 |
| Depth (mm) | 1278 |
| Weight (kg) | 130 |
| CE | COMPLIANT |
|---|---|
| UKCA | COMPLIANT |
| REACH Limit Exceeded | NO |
|---|---|
| Dangerous Goods Regulations | 9 |
| WEEE | B2B |
