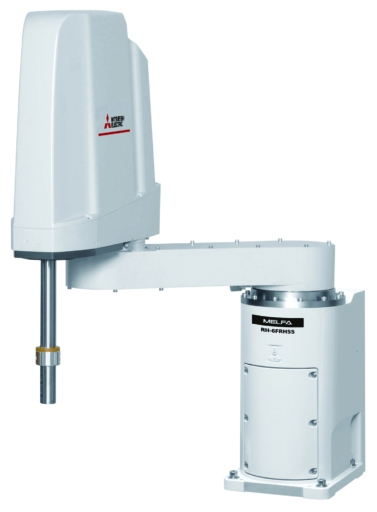

| Series | RH-FR SERIES |
|---|---|
| Type | SCARA |
| Payload (kg) | 6 |
| Installation Method | FLOOR |
| Speed (mm/s) | 8300 |
| Repeatability (mm) | 0,012 |
| Cycle Time (s) | 0,29 |
| Max. Reach Radius (mm) | 550 |
| Operating Range J1 (deg) | 340 |
| Operating Range J2 (deg) | 290 |
| Operating Range J4 (deg) | 720 |
| Z Axis Stroke (mm) | 200 |
| Environment specification | OIL MIST |
| Controller Type | CR800-R |
| Protection Class | IP54 |
| Power Supply 1 Phase (VAC) | 200-230 |
| Power Consumption (VA) | 1000 |
| Width (mm) | 174 |
|---|---|
| Height (mm) | 798 |
| Depth (mm) | 775 |
| Weight (kg) | 37 |
| CE | COMPLIANT |
|---|---|
| UKCA | COMPLIANT |
| Cardboard (g) | 27926 |
|---|---|
| Other paper (g) | 120 |
| Aluminum (g) | 0 |
| Steel (g) | 70 |
| Styrofoam (g) | 0 |
| Other plastic (g) | 1288 |
| Wood (g) | 36900 |
| Glass (g) | 0 |
| Others (g) | 500 |
| REACH Limit Exceeded | NO |
|---|---|
| Dangerous Goods Regulations | 9 |
| WEEE | B2B |
