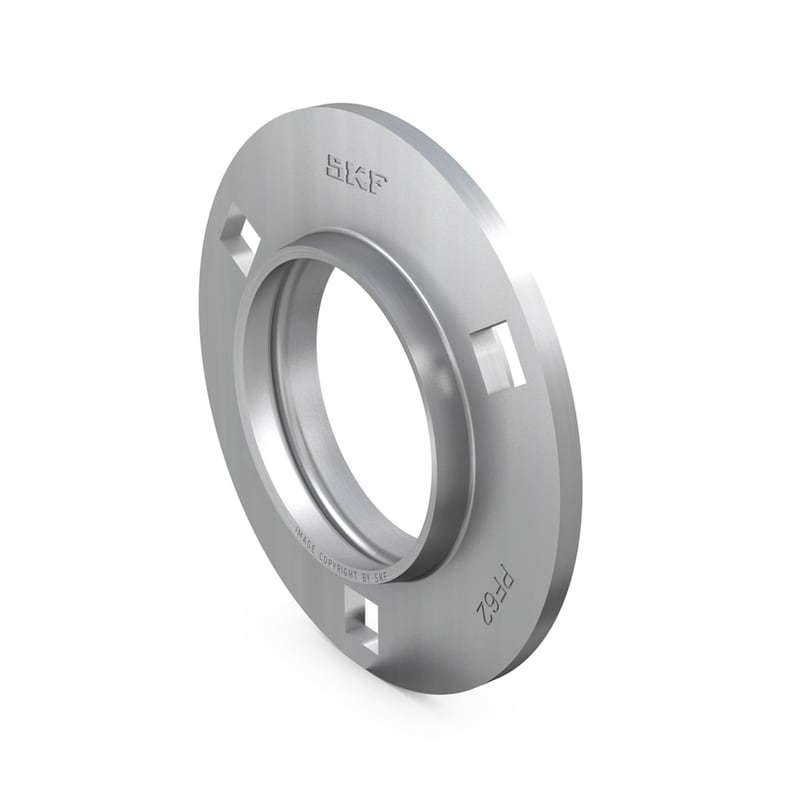

Round flanged pressed steel housings for insert bearings are lightweight and made from cold-rolled steel, and are zinc-coated for corrosion protection. The housings are cost-effective and designed for simple applications with light loads. The two-part housing, which has no provision for relubrication, can be ordered separately from the insert bearing, making a large number of combinations possible.
| Material |
Pressed steel
|
| Da |
47 mm
|
Diameter of spherical seat |
|---|---|---|
| A2 |
8 mm
|
Width housing half |
| A4 |
2 mm
|
Material thickness |
| H |
90 mm
|
Overall length |
| H2 |
min. 51 mm
|
Abutment diameter |
| J |
71.4 mm
|
Pitch diameter of attachment bolts |
| N |
8.7 mm
|
Length of attachment bolt hole |
| Permissible radial load |
max. 3.3 kN
|
| Mass housing |
0.16 kg
|
| Recommended diameter for attachment bolts, mm | G |
8 mm
|
|---|---|---|
| Recommended diameter for attachment bolts, inch | G |
0.3125 in
|
