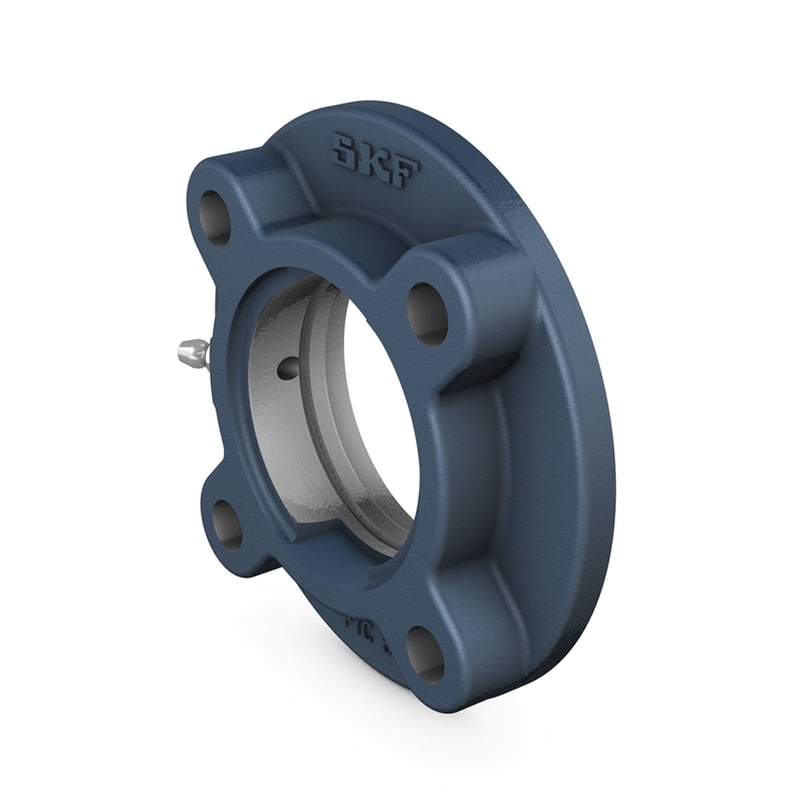

These round flanged housings for insert bearings are made of grey cast iron and can be bolted with four bolts to a machine wall or frame. They have been developed for bearing arrangements that must operate reliably in difficult environments.
| Material |
Cast iron
|
| Da |
110 mm
|
Diameter of spherical seat |
|---|---|---|
| Db |
137.1 mm
|
External diameter |
| Dc |
135 mm
|
Centring diameter |
| A |
48 mm
|
Overall width |
| A1 |
15 mm
|
Flange width |
| A2 |
29 mm
|
Axial position of spherical seat (from support surface) |
| A3 |
12 mm
|
Height of spherical seat centre |
| J |
160 mm
|
Pitch diameter of attachment bolts |
| J1 |
113.1 mm
|
Distance between attachment bolts |
| L |
195 mm
|
Overall width |
| N |
19 mm
|
Length of attachment bolt hole |
| RG |
1/4-28 UNF
|
Housing thread for grease fitting |
|---|---|---|
| R1 |
24.5 mm
|
Axial position of the housing thread |
| DN |
6.5 mm
|
Diameter of head sphere of grease fitting |
|---|---|---|
| SWN |
7 mm
|
Hexagonal key size for the grease fitting |
| GN |
1/4-28 SAE-LT
|
Thread of the grease fitting |
| Mass housing |
3.45 kg
|
| Recommended diameter for attachment bolts, mm | G |
16 mm
|
|---|---|---|
| Recommended diameter for attachment bolts, inch | G |
0.625 in
|
