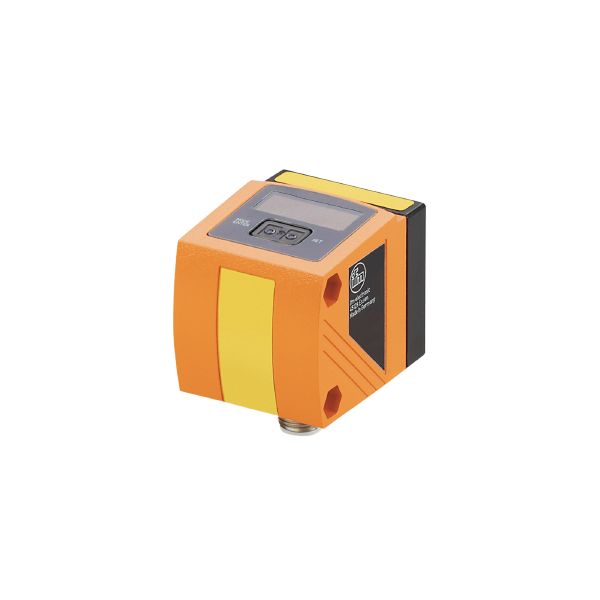

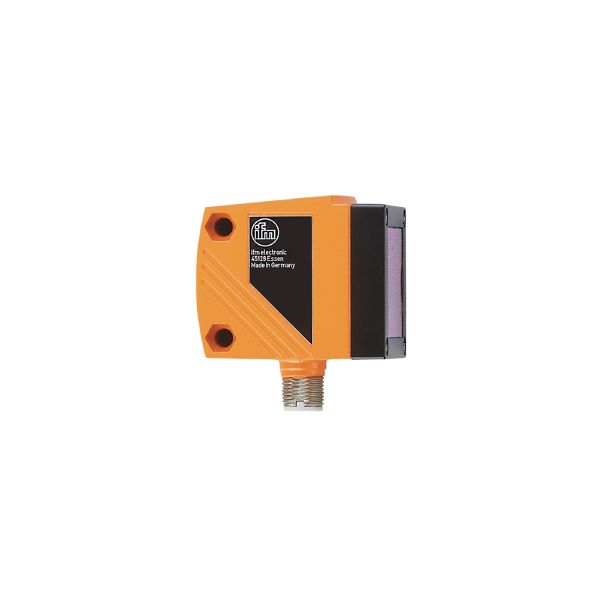

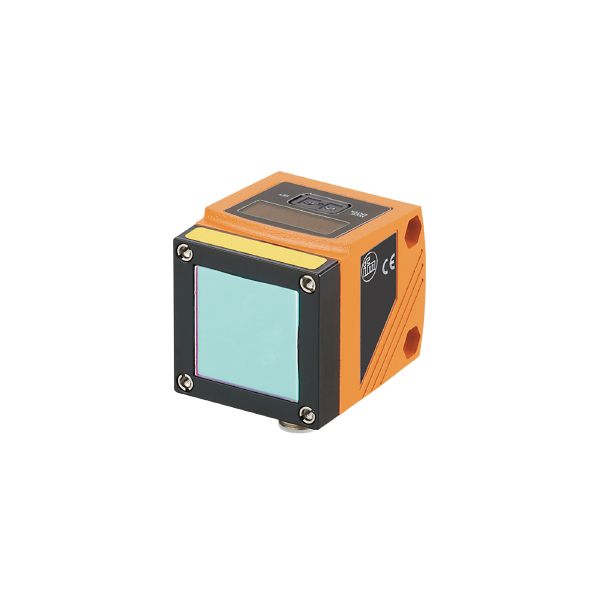

| Laser protection class | 2 |
|---|
| Operating voltage [V] | 10…30 DC |
|---|---|
| Current consumption [mA] | < 150 |
| Protection class | III |
| Reverse polarity protection | yes |
| Typ. lifetime [h] | 50000 |
| Number of inputs and outputs | Number of digital outputs: 1 |
|---|
| Total number of outputs | 1 |
|---|---|
| Electrical design | PNP |
| Number of digital outputs | 1 |
| Output function | normally open / normally closed; (programmable) |
| Max. current load per output [mA] | 200 |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
| Max. light spot width [mm] | 15 |
|---|---|
| Max. light spot height [mm] | 15 |
| Light spot dimensions refer to | 10 m |
| Background suppression [m] | 10…100 |
| Measuring range [m] | 0.2…10; (white paper 200 x 200 mm 90% remission) |
|---|---|
| Sampling rate [Hz] | 5 |
| Communication interface | IO-Link | ||||
|---|---|---|---|---|---|
| Transmission type | COM2 (38,4 kBaud) | ||||
| IO-Link revision | 1.1 | ||||
| SDCI standard | IEC 61131-9 | ||||
| Profiles | Smart Sensor: Sensor Identification; Binary Data Channel; Process Value; Sensor Diagnosis | ||||
| SIO mode | yes | ||||
| Required master port type | A | ||||
| Process data analogue | 2 | ||||
| Process data binary | 1 | ||||
| Min. process cycle time [ms] | 6 | ||||
| Supported DeviceIDs |
|
| Ambient temperature [°C] | -10…60 |
|---|---|
| Protection | IP 67 |
| Laser protection class | 2 | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Notes on laser protection |
|
||||||||||||||||||||
| MTTF [years] | 106 |
| Weight [g] | 268.5 |
|---|---|
| Dimensions [mm] | 59 x 42 x 52 |
| Materials | housing: diecast zinc; front pane: glass; LED window: PC |
| Display |
|
|---|
| Accessories (optional) |
|
|---|
| Remarks |
|
|
|---|---|---|
| Pack quantity | 1 pcs. |
| Connection | Connector: 1 x M12; coding: A |
|---|
| repeatability of the measured values | accuracy | |||
| white (90 % remission) | grey (18 % remission) | white (90 % remission) | grey (18 % remission) | |
| 200…1000 mm | ± 4.5 mm | ± 6.0 mm | ± 15.0 mm | ± 16.0 mm |
| 1000…2000 mm | ± 5.0 mm | ±8.0 mm | ± 15.0 mm | ± 18.0 mm |
| 2000…4000 mm | ± 16.0 mm | ±19.0 mm | ± 25.0 mm | ± 30.0 mm |
| 4000…6000 mm | ± 24.0 mm | ± 33.0 mm | ± 35.0 mm | ± 45.0 mm |
| 6000…10000 mm | ± 50.0 mm | – | ± 65.0 mm | – |
| Extraneous light on the object | < 40 klx |
| repeatability of the measured values | accuracy | |||
| white (90 % remission) | grey (18 % remission) | white (90 % remission) | grey (18 % remission) | |
| 200…2000 mm | ± 14.0 mm | ± 14.0 mm | ± 24.0 mm | ± 24.0 mm |
| 2000…4000 mm | ± 25.0 mm | ± 30.0 mm | ± 35.0 mm | ± 40 mm |
| 4000…6000 mm | ± 31.0 mm | ±45.0 mm | ± 41.0 mm | ± 55.0 mm |
| 6000…10000 mm | ± 60.0 mm | – | ± 70.0 mm | – |
| Extraneous light on the object | < 40…100 klx |
| Range on black object (6 % remission) | <= 4000 klx |
| The values apply at | |
| constant ambient conditions | 23 °C / 960 hPa |
| minimum power-on time in minutes | 10 |
