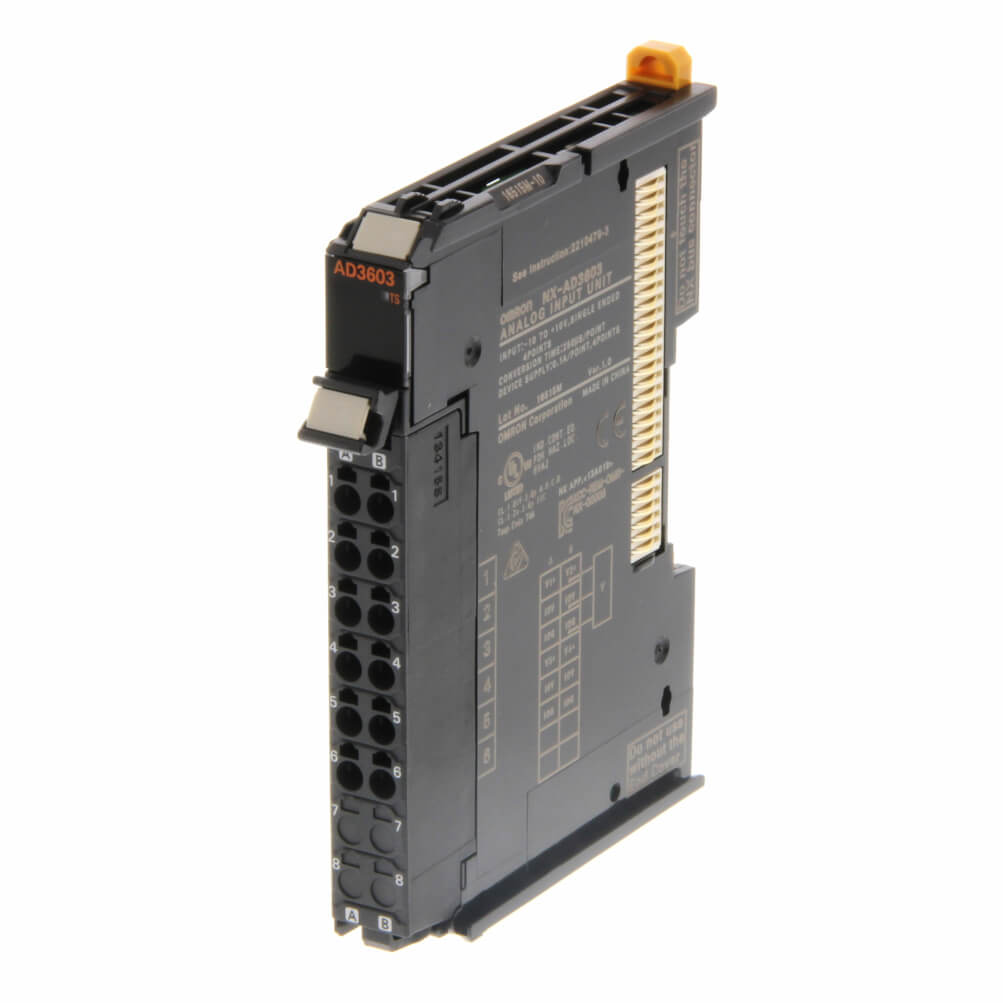

4 Analog Inputs, -10 to 10 V single ended, resolution 1:8000, 250 µs/ch, screwless push-in connector, 12 mm wide
| I/O system | NX I/O Bus |
| Type of module | Analog I/O |
| Number of analog inputs | 4 |
| Temperature input type | None |
| Linear analog input type | -10 to 10 V |
| Resolution of the analog inputs | 13 Bit |
| Input circuit type | Single-ended |
| Number of analog outputs | 0 |
| Linear analog output type | None |
| Conversion time | 1 ms/unit |
| Signal processing | Free running |
| IO-Link master | ❌ |
| I/O connection type | Push-in |
| Number of I/O connectors | 1 |
| Detachable I/O connector | ✔ |
| Suitable for safety functions | ❌ |
| SIL according to IEC 61508 | None |
| Degree of protection (IP) | IP20 |
| Product Weight (unpacked) | 70 g |
 |
NX-AUX02 | Terminal block coding pins for 10x NX I/O units (terminal block: 30 pins, unit: 30 pins) |
|
 |
NX-TBA122 | Replacement screwless push-in connector with 12 wiring terminals (marked A+B) |
|
