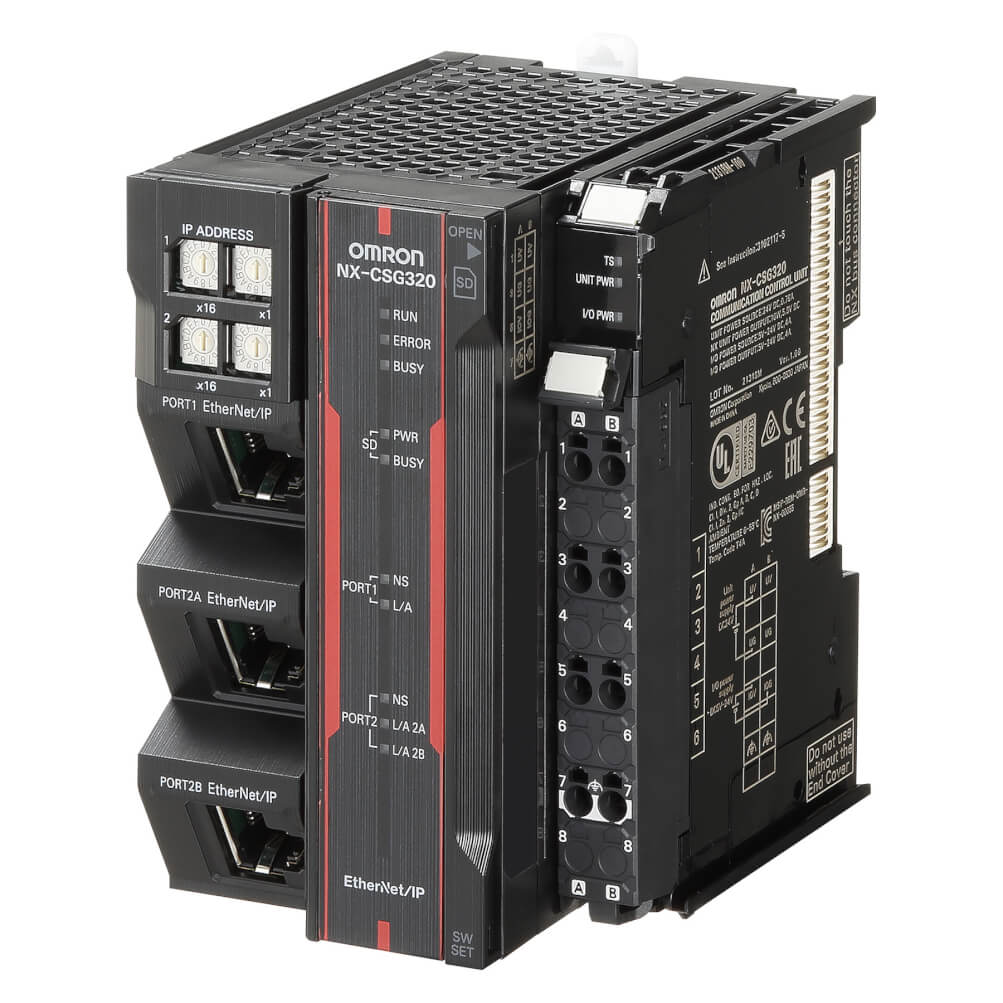

Safety Gateway for CIP-Safety, SD-Card slot, iBus connection up to 10 A, Interface 1: Ethernet/IP port, Interface 2: CIP-Safety switching ports
| I/O system | NX I/O Bus |
| Type of module | Communication |
| IO-Link master | ❌ |
| Suitable for safety functions | ✔ |
| SIL according to IEC 61508 | 3 |
| Communication port(s) | EtherNet/IP |
| Number of communication ports | 3 |
| Degree of protection (IP) | IP20 |
| Product Height (unpacked) | 100 mm |
| Product Width (unpacked) | 72 mm |
| Product Depth (unpacked) | 90 mm |
| Product Weight (unpacked) | 390 g |
 |
NX-AUX02 | Terminal block coding pins for 10x NX I/O units (terminal block: 30 pins, unit: 30 pins) |
|
 |
XS6W-6LSZH8SS1000CM-B | Ethernet patch cable, F/UTP, Cat.6A, LSZH (Blue), 10 m |
|
|
XS6W-6LSZH8SS100CM-B | Ethernet patch cable, F/UTP, Cat.6A, LSZH (Blue), 1 m |
|
|
XS6W-6LSZH8SS2000CM-B | Ethernet patch cable, F/UTP, Cat.6A, LSZH (Blue), 20 m |
|
|
XS6W-6LSZH8SS200CM-B | Ethernet patch cable, F/UTP, Cat.6A, LSZH (Blue), 2 m |
|
|
XS6W-6LSZH8SS20CM-B | Ethernet patch cable, F/UTP, Cat.6A, LSZH (Blue), 0.2 m |
|
|
XS6W-6LSZH8SS500CM-B | Ethernet patch cable, F/UTP, Cat.6A, LSZH (Blue), 5 m |
|
|
XS6W-6LSZH8SS50CM-B | Ethernet patch cable, F/UTP, Cat.6A, LSZH (Blue), 0.5 m |
|
 |
NX-TBC082 | Replacement screwless push-in connector with 8 wiring terminals (marked A+B+FG) |
|
Datasheet
EN PDF
Datasheet
EN PDF
2 Analog Outputs, 4 - 20 mA, resolution 1:30000, 10 µs/ch, screwless push-in connector, 12 mm wide
Serial Communication Interface Unit, 2 x RS-232C, 9-pin D-sub, 30 mm wide
2 Analog Inputs, -10 to 10 V differential, resolution 1:30000, 10 µs/ch, screwless push-in connector, 12 mm wide
2 Analog Inputs, 4 to 20 mA differential, resolution 1:8000, 250 µs/ch, screwless push-in connector, 12 mm wide
