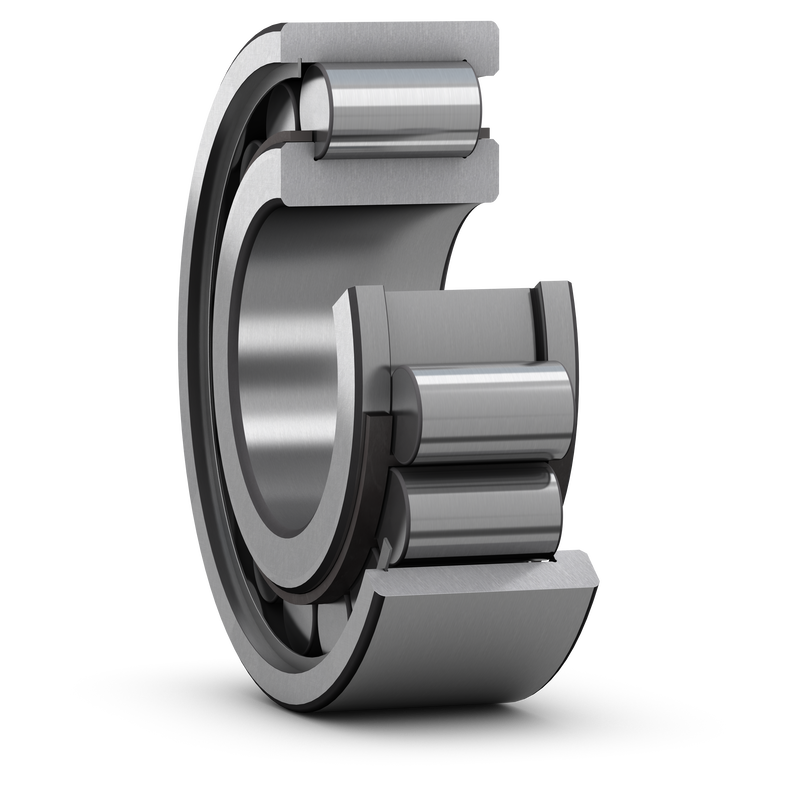

SKF single row high-capacity cylindrical roller bearings have the very high load carrying capacity of full complement bearings and the high speed capability of bearings with a cage. They are designed for applications such as industrial gearboxes, wind turbine gearboxes and mining equipment. Their internal design enables the bearings to accommodate axial displacement in one direction. The bearings are of non-separable design.
| d |
220 mm
|
Bore diameter |
|---|---|---|
| D |
460 mm
|
Outside diameter |
| B |
145 mm
|
Width |
| d1 |
≈ 302.1 mm
|
Shoulder diameter inner ring |
| D1 |
≈ 391.8 mm
|
Shoulder diameter outer ring |
| E |
413 mm
|
Raceway diameter outer ring |
| s |
max. 10.4 mm
|
Permissible axial displacement from the normal position of one bearing ring relative to the other |
| r1,2 |
min. 5 mm
|
Chamfer dimension |
| da |
min. 240 mm
|
Abutment diameter shaft |
|---|---|---|
| da |
max. 290 mm
|
Abutment diameter shaft |
| Da |
min. 386 mm
|
Abutment diameter housing |
| Da |
max. 440 mm
|
Abutment diameter housing |
| ra |
max. 4 mm
|
Fillet radius |
| ra |
max. 4 mm
|
Fillet radius |
| Basic dynamic load rating | C |
2 510 kN
|
|---|---|---|
| Basic static load rating | C0 |
3 650 kN
|
| Fatigue load limit | Pu |
335 kN
|
| Reference speed |
1 300 r/min
|
|
| Limiting speed |
2 000 r/min
|
|
| Calculation factor | kr |
0.2
|
| Mass bearing |
115 kg
|
