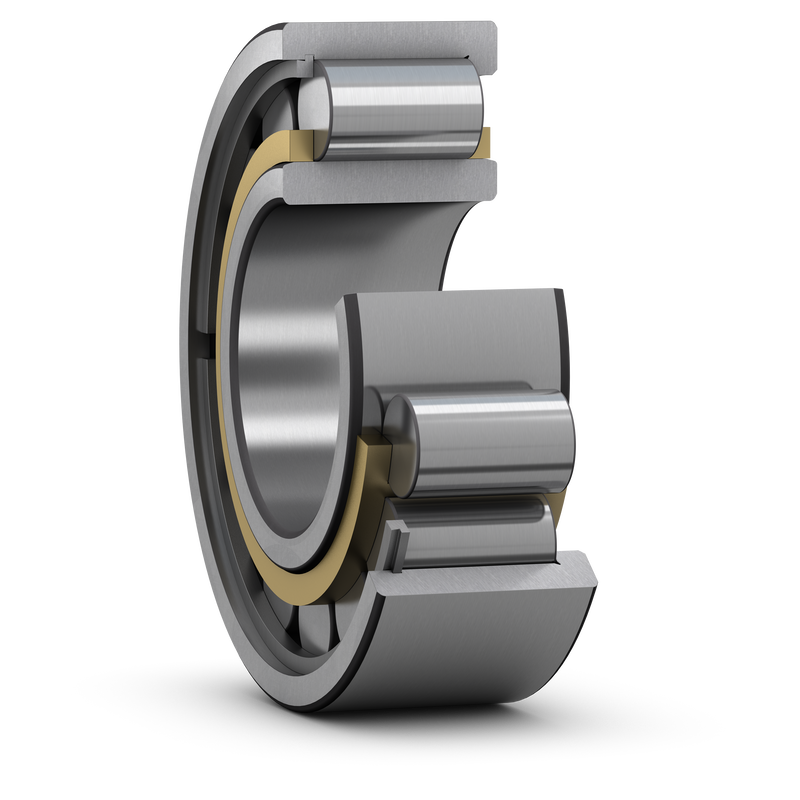

Single row cylindrical roller bearings are designed to accommodate high to very high radial loads in combination with medium to high speeds. The SKF assortment includes many designs and variants, such as standard, full complement and high capacity bearings. Depending on the configuration of the outer and inner rings, the bearings are available in locating as well as non-locating designs.
| SKF performance class |
SKF Explorer
|
| d |
170 mm
|
Bore diameter |
|---|---|---|
| D |
310 mm
|
Outside diameter |
| B |
86 mm
|
Width |
| D1 |
≈ 268.8 mm
|
Shoulder diameter outer ring |
| F |
205 mm
|
Raceway diameter inner ring |
| s |
max. 2.4 mm
|
Permissible axial displacement from the normal position of one bearing ring relative to the other |
| r1,2 |
min. 4 mm
|
Chamfer dimension |
| da |
min. 187 mm
|
Abutment diameter shaft |
|---|---|---|
| da |
max. 201 mm
|
Abutment diameter shaft |
| db |
min. 208 mm
|
Abutment diameter shaft |
| Da |
min. 275 mm
|
Abutment diameter housing |
| Da |
max. 292.4 mm
|
Abutment diameter housing |
| ra |
max. 3 mm
|
Fillet radius |
| ra |
max. 3 mm
|
Fillet radius |
| Basic dynamic load rating | C |
1 160 kN
|
|---|---|---|
| Basic static load rating | C0 |
1 530 kN
|
| Fatigue load limit | Pu |
156 kN
|
| Reference speed |
2 200 r/min
|
|
| Limiting speed |
2 400 r/min
|
|
| Calculation factor | kr |
0.16
|
| Mass bearing |
28.6 kg
|
