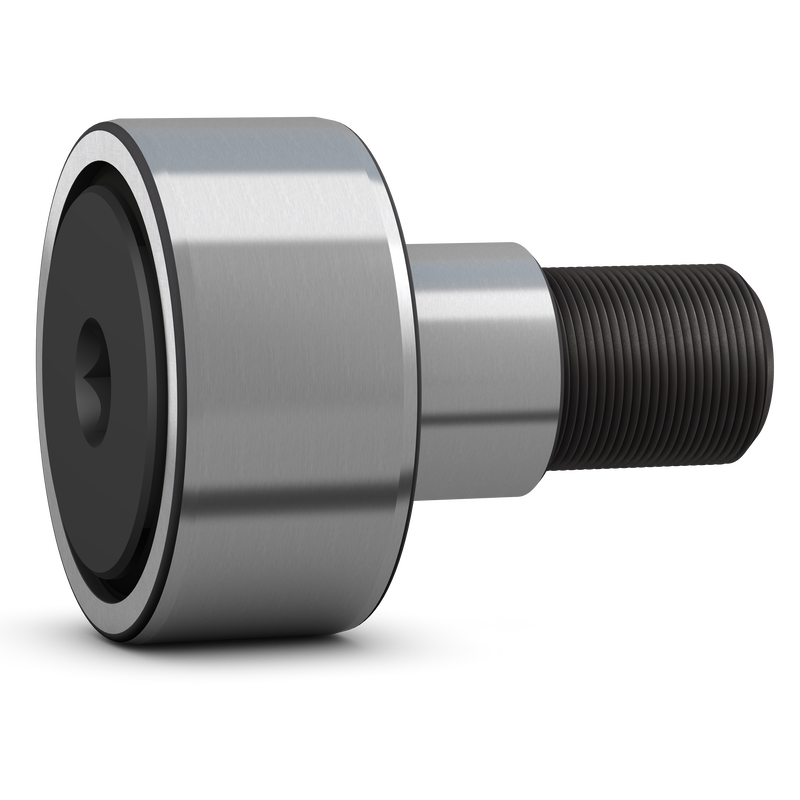

Cam followers (stud-type track rollers) are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc. They are based on a needle roller bearing with a threaded solid stud instead of an inner ring. The design includes an eccentric collar pressed onto the stud, and a thick-walled outer ring with a crowned running surface. The bearings are supplied sealed and ready-to-mount, and can be relubricated via the stud.
| D |
35 mm
|
Outside diameter |
|---|---|---|
| d |
20 mm
|
Attachment diameter |
| B |
52.1 mm
|
Total length |
| C |
18 mm
|
Width outer ring |
| B1 |
32.5 mm
|
Length shank on stud |
| B2 |
8 mm
|
Distance lubrication hole to flange ring |
| B3 |
14 mm
|
Width locking collar |
| C1 |
0.8 mm
|
Distance face outer ring to face side washer |
| d1 |
27.34 mm
|
Outside diameter flange ring |
| G |
M16x1.5
|
Thread stud |
| G1 |
17 mm
|
Length thread |
| M |
4 mm
|
Seat diameter for lubrication accessories |
| M1 |
3 mm
|
Diameter of lubrication hole (shank) |
| SW |
8 mm
|
Width across flats |
| c |
1 mm
|
Eccentricity |
| Basic dynamic load rating | C |
11.9 kN
|
|---|---|---|
| Basic static load rating | C0 |
23.6 kN
|
| Fatigue load limit | Pu |
2.8 kN
|
| Maximum dynamic radial loads | Fr |
max. 14.3 kN
|
| Maximum static radial loads | F0r |
max. 20.4 kN
|
| Limiting speed |
2 400 r/min
|
| Mass cam follower |
0.18 kg
|
| Recommended tightening torque |
58 N·m
|
