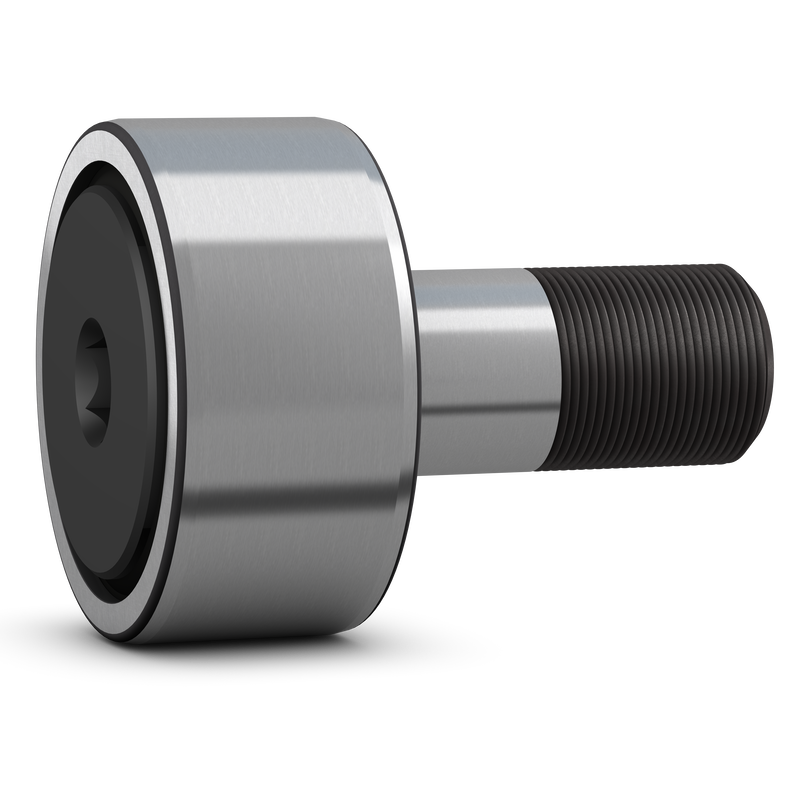

Cam followers (stud-type track rollers) are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc. They are based on a needle roller bearing with a threaded solid stud instead of an inner ring. They have a thick-walled outer ring with a cylindrical running surface and are supplied sealed and ready-to-mount. The bearings can be relubricated via the stud.
| D |
16 mm
|
Outside diameter |
|---|---|---|
| d |
6 mm
|
Attachment diameter |
| B |
28.2 mm
|
Total length |
| C |
11 mm
|
Width outer ring |
| B1 |
16 mm
|
Length shank on stud |
| C1 |
0.6 mm
|
Distance face outer ring to face side washer |
| d1 |
11.8 mm
|
Outside diameter flange ring |
| G |
M6x1
|
Thread stud |
| G1 |
8 mm
|
Length thread |
| M |
2 mm
|
Seat diameter for lubrication accessories |
| SW |
3 mm
|
Width across flats |
| r1,2 |
min. 0.3 mm
|
Chamfer dimension |
| Basic dynamic load rating | C |
2.92 kN
|
|---|---|---|
| Basic static load rating | C0 |
3.1 kN
|
| Fatigue load limit | Pu |
0.325 kN
|
| Maximum dynamic radial loads | Fr |
max. 3.05 kN
|
| Maximum static radial loads | F0r |
max. 4.3 kN
|
| Limiting speed |
6 000 r/min
|
| Mass cam follower |
0.019 kg
|
| Recommended tightening torque |
3 N·m
|
