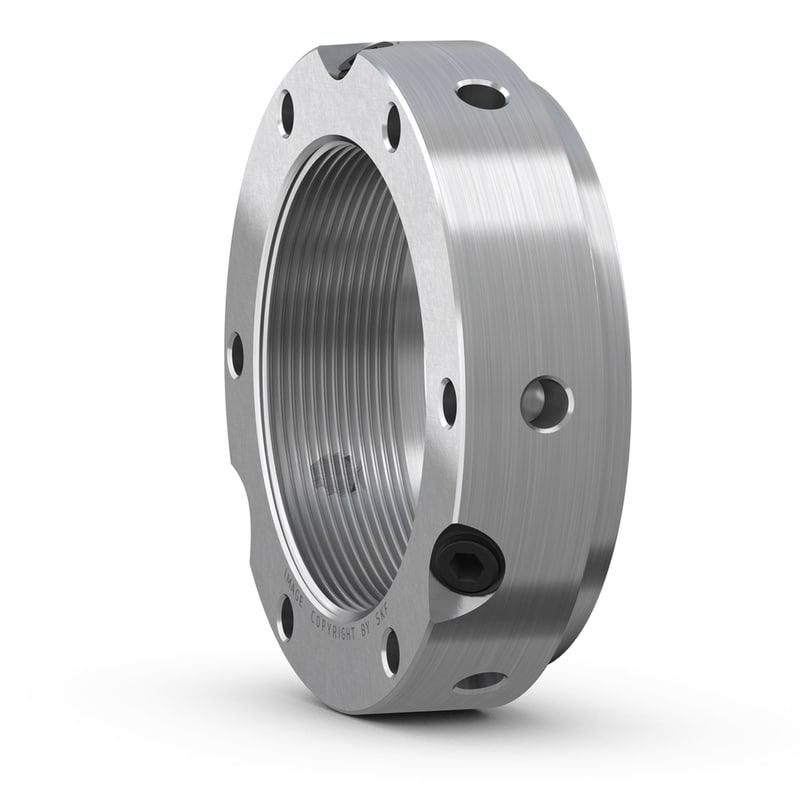

KMTA precision lock nuts have a cylindrical outside surface and are intended for applications where high precision, simple assembly and reliable locking are required. The three equally-spaced locking pins enable these lock nuts to be accurately positioned at right angles to the shaft. However, they can also be adjusted to compensate for slight angular deviations of adjacent components. Maximum axial run-out between the locating face and thread (up to size 40): 0.005 mm.
| G |
M 30×1.5
|
Thread |
|---|---|---|
| d1 |
40 mm
|
Outside diameter locating side face |
| B |
20 mm
|
Width |
| d3 |
48 mm
|
Outside diameter |
| d4 |
32 mm
|
Inner diameter locating side face |
| J1 |
40.5 mm
|
Pitch diameter for pin-type face spanner |
| J2 |
11 mm
|
Distance between holes for pin-wrench and locating side face |
| N1 |
4.3 mm
|
Diameter holes for pin-type face spanner |
| N2 |
5 mm
|
Diameter holes for pin-wrench |
| Axial static load carrying capacity |
160 kN
|
| Mass |
0.16 kg
|
| Associated spanner (Hook spanner in accordance with DIN 1810) |
B 45-50
|
| Set / Locking screw size |
M6
|
| Recommended tightening torque |
8 N·m
|
